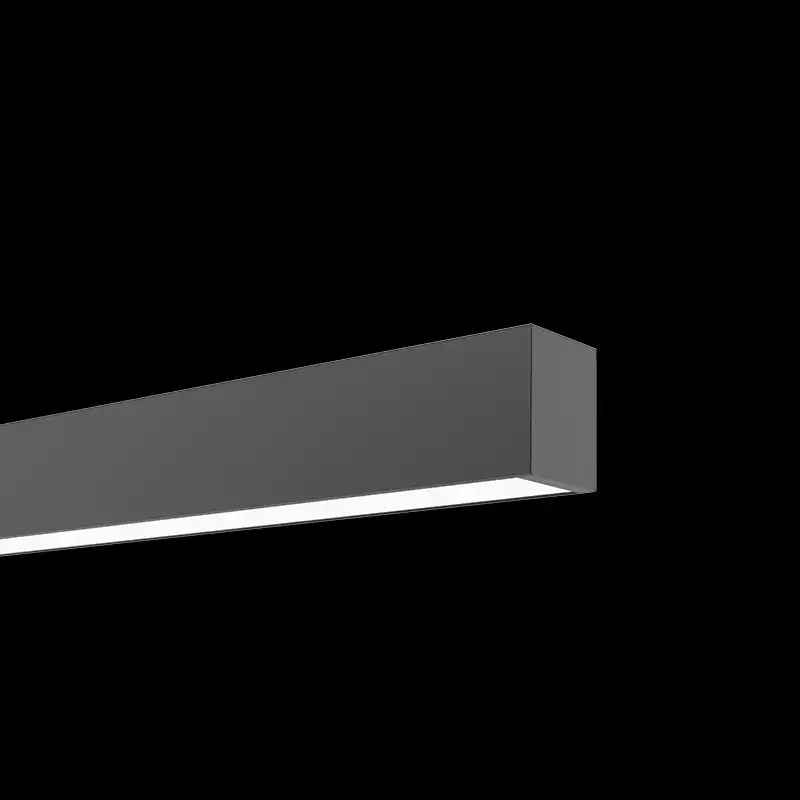

BS5470FD luminaire
luminaire entry cable 1.5M、no application accessories
- EN
BASIC CONFIGURATION
Features
·Material：AL6063-T5,spraying surface/anodizing
·Coating：Silver anodized(RAL9006),Black(RAL9005),White(RAL9003)
·Lighting direction: downward
·Light efficiency：110LM/W(regular model/emergency model)、130LM/W(high efficiency model)
·Dimming method：Non/ DALI-2+PUSH/ 1-10V optional
·Length：1200mm/1800mm/2400mm optional (other length on request)
·Color tolerance：SDCM≤3(ANSI)
·CRI：80/90
·CCT：2700/3000/3500/4000/5000/6500/3000-6500 optional
·Input voltage：AC220-240V
·Application: Indoor
·Installation：Pendant
·IP grade：IP20
·Certification：CE、CB、UKCA、ROHS、Reach
·Warranty：5 years
·Coating：Silver anodized(RAL9006),Black(RAL9005),White(RAL9003)
·Lighting direction: downward
·Light efficiency：110LM/W(regular model/emergency model)、130LM/W(high efficiency model)
·Dimming method：Non/ DALI-2+PUSH/ 1-10V optional
·Length：1200mm/1800mm/2400mm optional (other length on request)
·Color tolerance：SDCM≤3(ANSI)
·CRI：80/90
·CCT：2700/3000/3500/4000/5000/6500/3000-6500 optional
·Input voltage：AC220-240V
·Application: Indoor
·Installation：Pendant
·IP grade：IP20
·Certification：CE、CB、UKCA、ROHS、Reach
·Warranty：5 years
BS5470FD_CC
Linear Lights > Luminaires > BASIC > Pendant/Ceiling
Reset selected
Version
Normal
High efficiency
Emergency
3 CCT tunable(Dial switch)
CCT
2700K
3000K
3500K
4000K
5000K
6500K
3000K-6500K
>80
>90
Typ.power
27W
38W
53W
Label Type
COLORS
Customized Label
COLORS Individual
Diffuser
Carrier Style
Flat carrier
White
Silver
Black
Light Source Type
Constant Current Rigid PCB
Length
1200mm
1800mm
2400mm
Dimming Method
Non-Dimming
1-10V Dimming
DALI Dimming
Input Voltage
AC200-240V
Holeless end cap
Ordering Code:
LLS-BS5470FDFS-T-D
Qty
$ ** /SET
Ordering Code:
LLS-BS5470FDFS-T-D
