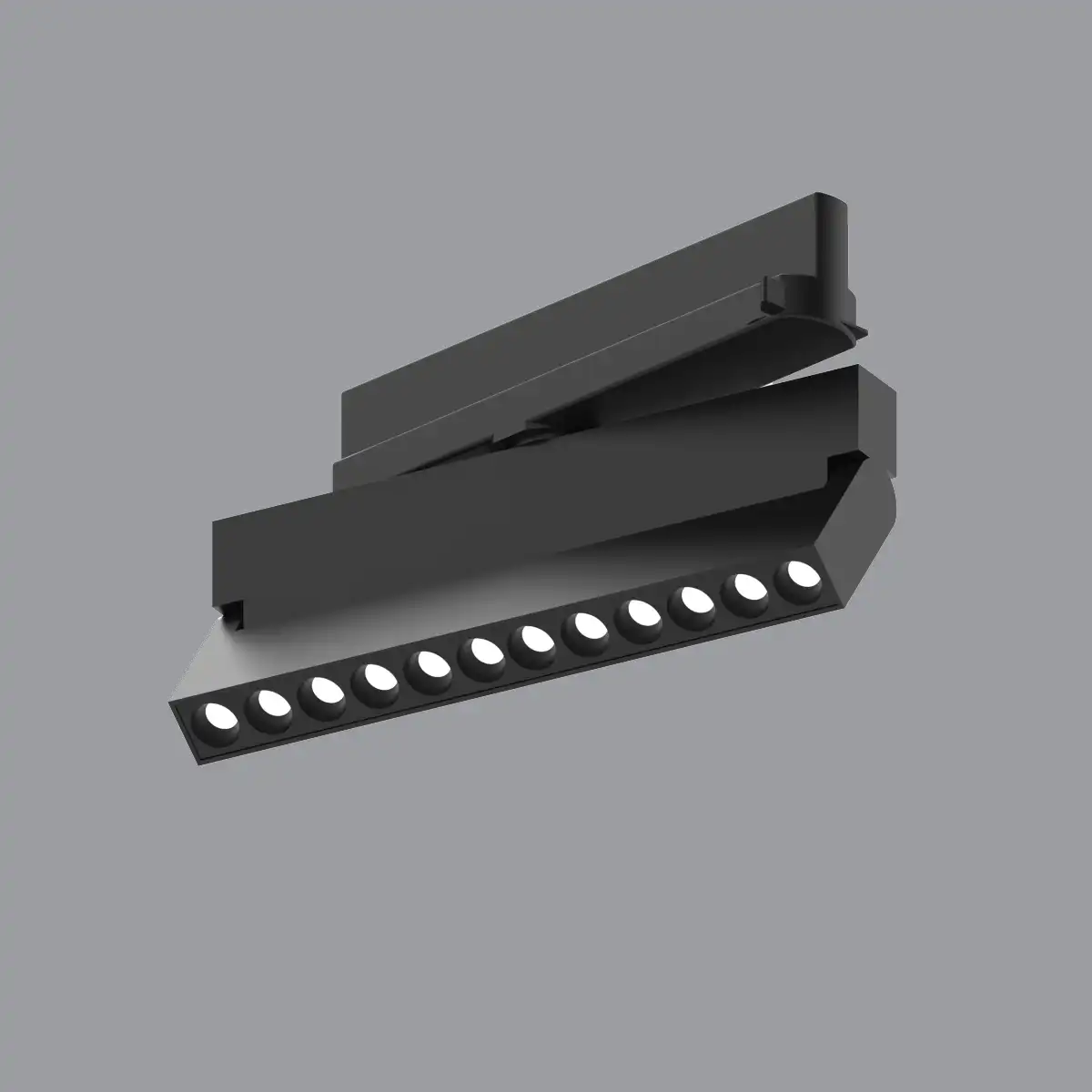

HG(A)_Module(AC220V)
Required track installation
Including electrical conector
Adapted track brand:Powergear, Stucchi, Global, Staff, Eutrac, Nordic
- EN
BASIC CONFIGURATION
Features
· Material: AL6063-T5, spraying surface
· Coating: Black (RAL9005)
· IP grade: IP20
· Beam angle: 30°/40° optional
· CCT: 2700/3000/4000K optional
· CRI: 90
· SDCM: <5 Step (ANSI)
· Input voltage: AC220-240V
· Working temperature: -15℃~35℃
· Lighting direction: Downward
· Dimming method: Non-dimming
(Suitable for four-wire three-circuit guide rail)
/DALI dimming(Suitable for six-wire three-circuit guide rail)
optional
· Application: Indoor
· Certification: CE、UKCA、ROHS、Reach
· Warranty: 5years
· Coating: Black (RAL9005)
· IP grade: IP20
· Beam angle: 30°/40° optional
· CCT: 2700/3000/4000K optional
· CRI: 90
· SDCM: <5 Step (ANSI)
· Input voltage: AC220-240V
· Working temperature: -15℃~35℃
· Lighting direction: Downward
· Dimming method: Non-dimming
(Suitable for four-wire three-circuit guide rail)
/DALI dimming(Suitable for six-wire three-circuit guide rail)
optional
· Application: Indoor
· Certification: CE、UKCA、ROHS、Reach
· Warranty: 5years
HG(A)
Track Lights > High-voltage > H-Track > Linear Module
Reset selected
CCT
2700K
3000K
4000K
>90
Typ.power
12W
Label Type
COLORS
Customized Label
Grating 30°
Grating 40°
Black
Length
220mm
Dimming Method
Non-Dimming
DALI Dimming
Ordering Code:
0220(A)-9B12
Qty
$ ** /SET
Ordering Code:
0220(A)-9B12
