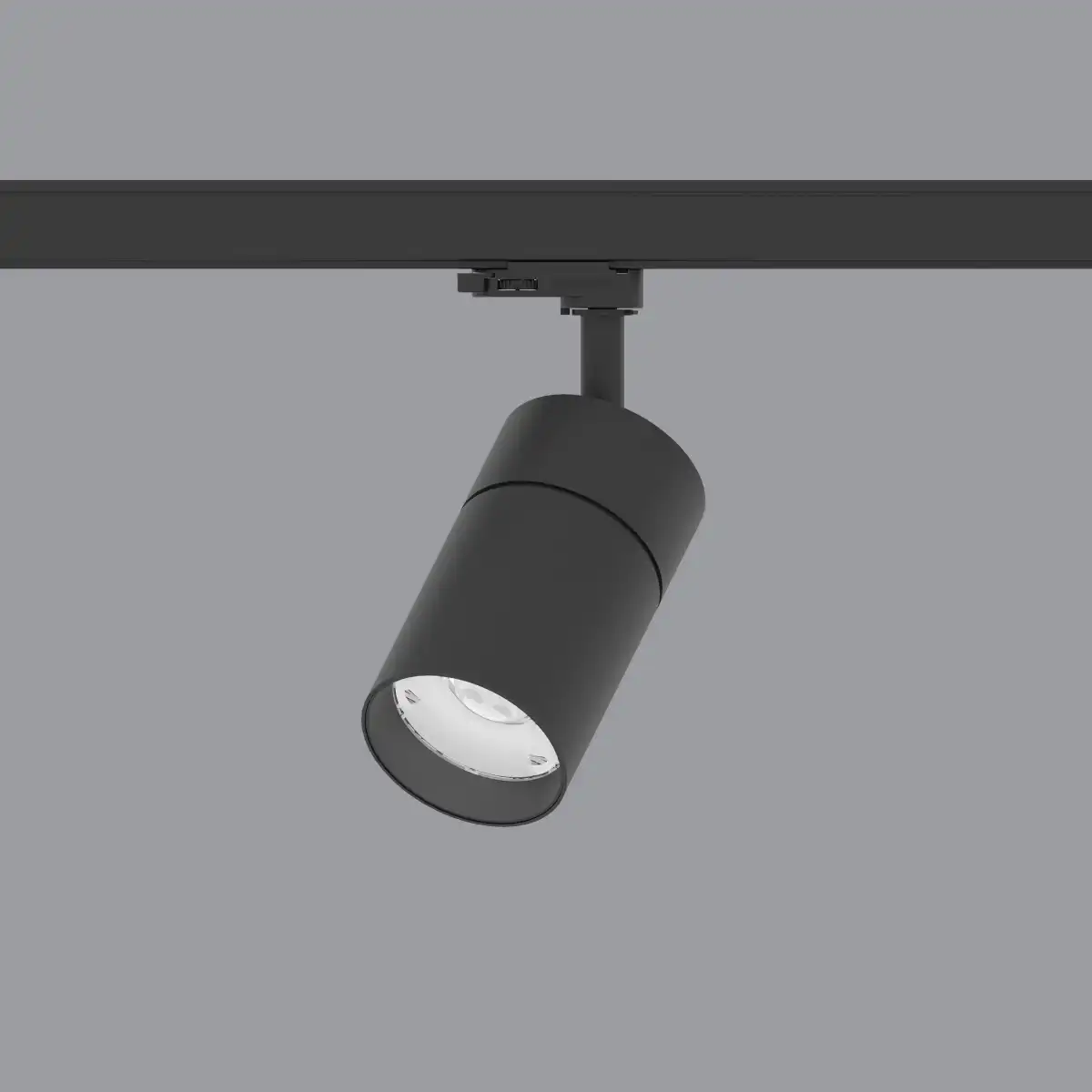

HS-73_Module(AC220V)
Required track installation
Including electrical conector
Adapted track brand:Powergear, Stucchi, Global, Staff, Eutrac, Nordic
- EN
BASIC CONFIGURATION
Features
· Material: AL6063-T5, spraying surface
· Coating: Black (RAL9005)、White(RAL9003)
· IP grade: IP20
· Beam angle: 10°/15°/24°/32°/40°/50° optional
· CCT: 2700/3000/4000/3000-5000K optional
· CRI: 90
· SDCM(Whole Luminare): <5 Step (ANSI)
· SDCM(Light source): <3 Step (ANSI)
· Input voltage: AC220-240V
· Working temperature: -15℃~35℃
· Lighting direction: Downward
· Dimming method: Non-dimming/DALI dimming optional
· Application: Indoor
· Certification: CE、UKCA、ROHS、Reach
· Warranty: 5 years
· Coating: Black (RAL9005)、White(RAL9003)
· IP grade: IP20
· Beam angle: 10°/15°/24°/32°/40°/50° optional
· CCT: 2700/3000/4000/3000-5000K optional
· CRI: 90
· SDCM(Whole Luminare): <5 Step (ANSI)
· SDCM(Light source): <3 Step (ANSI)
· Input voltage: AC220-240V
· Working temperature: -15℃~35℃
· Lighting direction: Downward
· Dimming method: Non-dimming/DALI dimming optional
· Application: Indoor
· Certification: CE、UKCA、ROHS、Reach
· Warranty: 5 years
HS-73
Track Lights > High-voltage > H-Track > Track Spotlight
Reset selected
Version
Normal
High efficiency
3 CCT tunable(Dial switch)
CCT
2700K
3000K
4000K
3000K-5000K
>90
Typ.power
20W
25W
Label Type
COLORS
Customized Label
10°
15°
24°
32°
40°
50°
White
Black
Length
φ73mm Spotlight
Dimming Method
Non-Dimming
DALI Dimming
Ordering Code:
73-9
Qty
$ ** /SET
Ordering Code:
73-9
