BASIC CONFIGURATION

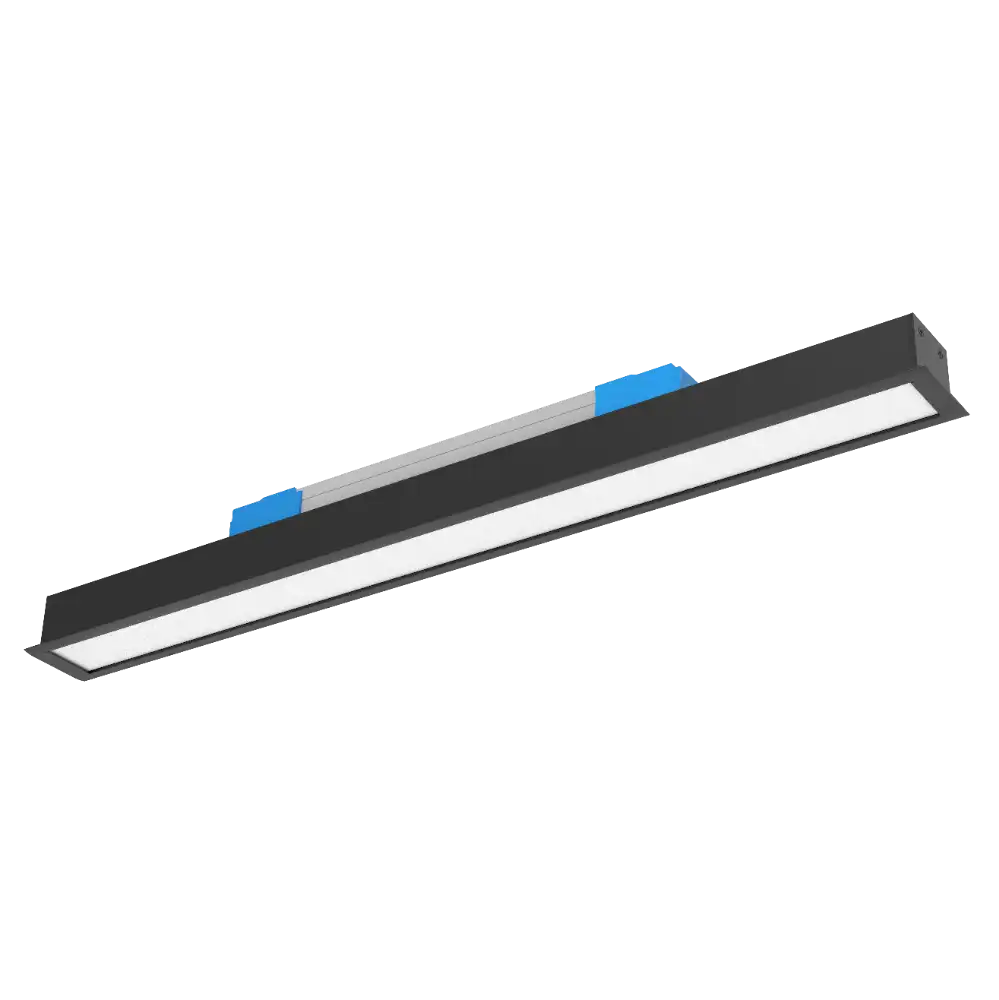

LE40FD luminaire
luminaire entry cable 2M
Included recessed mounting accessories

Features

·Material：AL6063-T5，spraying surface
·Coating：Black(RAL9005)、White(RAL9003)
·Lighting direction: downward
·Light efficiency：100LM/W(CCT tunable)、110LM/W(Normal/Emergency/Presence sensing)、130LM/W(High efficiency )
·Dimming method：Non/ DALI-2+PUSH/ 1-10V optional
·Length：1200mm/1500mm/1800mm/2400mm optional (other length on request)
·Color tolerance：SDCM≤3(ANSI)
·CRI：80/90
·CCT：2700/3000/3500/4000/5000/6500/3000-6500K optional
·Input voltage：AC220-240V
·Application: Indoor
·Installation：Recessed
·IP grade：IP20
·Certification：CE、UKCA、ROHS、Reach
·Warranty：5 years (emergency model: 3 years)

LE40FD

Linear Lights > Luminaires > LINE40 > Recessed

Reset selected

Version

  • Normal

  • High efficiency

  • Emergency

  • 3 CCT tunable(Dial switch)

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 5000K

  • 6500K

  • 3000K-6500K

CRI

  • >80

  • >90

Typ.power

  • 34W

  • 46W

  • 51W

  • 68W

Label Type

  • COLORS

  • Customized Label

Package

  • COLORS Individual

Diffuser Nature

  • Diffuser

Carrier Style

  • No carrier

Color

  • Yellow

  • White

  • Rose gold

  • Matt Orange

  • Matt Green

  • Matt Blue

  • Champagne Gold

  • Black

Light Source Type

  • Constant Current Rigid PCB

Length

  • 1200mm

  • 1500mm

  • 1800mm

  • 2400mm

Dimming Method

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

Input Voltage

  • AC200-240V

End Cap Style

  • Holeless end cap

Ordering Code:

LLS-LE40FDXS-T-D

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

LLS-LE40FDXS-T-D
