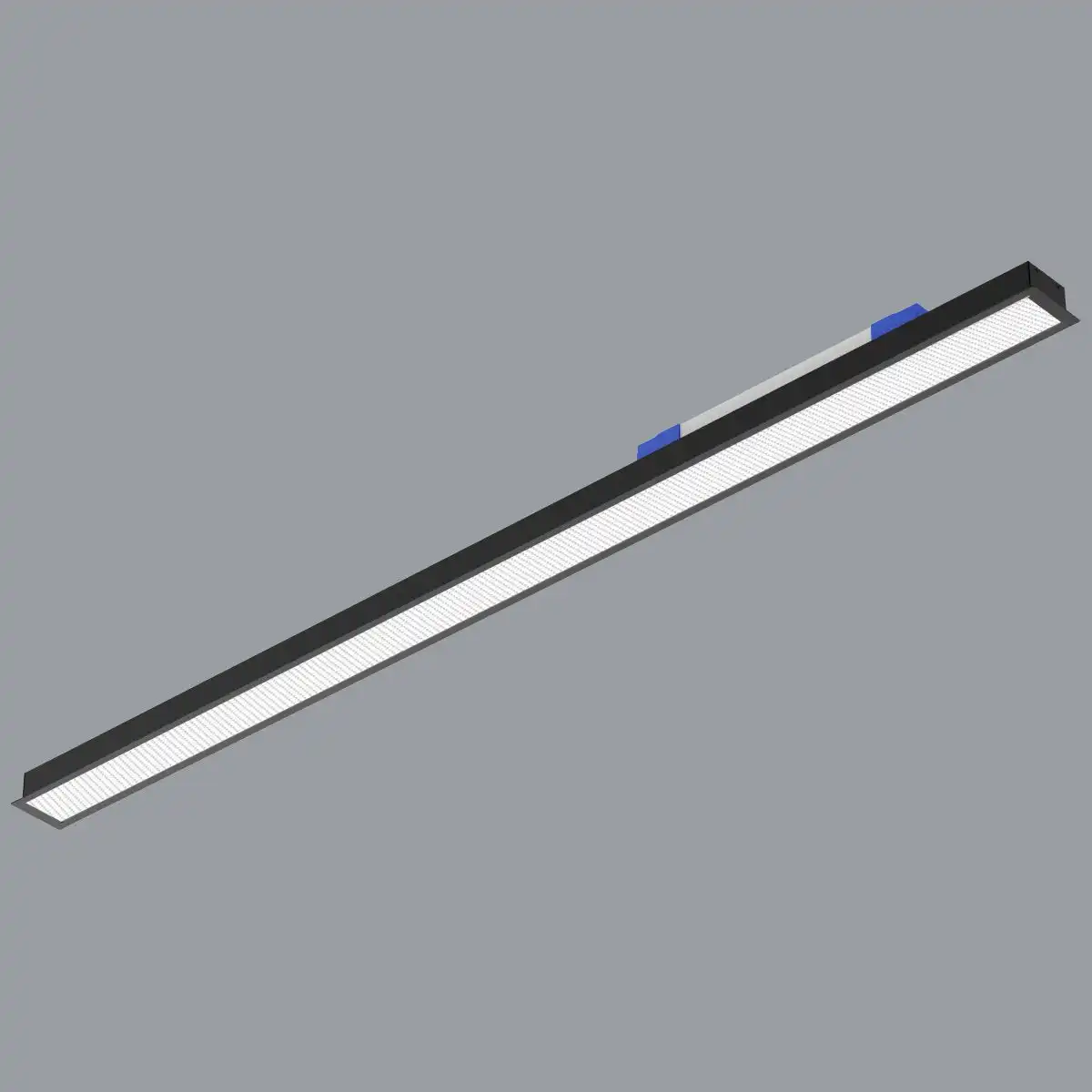

LE50FP luminaire
luminaire entry cable 1.5M
≤1.2m luminaire included 2 PCS recessed clips;
1.2m＜L≤1.8m luminaire included 3 PCS recessed clips;
- EN
BASIC CONFIGURATION
Features
·Material:AL6063-T5,spraying surface,anodizing
·Coating:Silver anodized,Black,White
·Length:1200,1800mmoptional
·Lighting direction:Downward
·Installaton:Recessed
·IP grade:IP20
·Application:Indoor
·Light efficiency:100LM/W(Normal),105LM/W(High efficiency-3CCT Dial switch)
115LM/W(High efficiency),90LM/W(Normal-3CCT Dial switch)
·UGR(X=4H,Y=8H):≤19
·SDCM:<3 Step (ANSI)
·CRI:80,90
·CCT:2700K,3000K,4000K,6500K,3000-4200-6200K optional
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years
·Coating:Silver anodized,Black,White
·Length:1200,1800mmoptional
·Lighting direction:Downward
·Installaton:Recessed
·IP grade:IP20
·Application:Indoor
·Light efficiency:100LM/W(Normal),105LM/W(High efficiency-3CCT Dial switch)
115LM/W(High efficiency),90LM/W(Normal-3CCT Dial switch)
·UGR(X=4H,Y=8H):≤19
·SDCM:<3 Step (ANSI)
·CRI:80,90
·CCT:2700K,3000K,4000K,6500K,3000-4200-6200K optional
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years
LE50FP
Linear Lights > Luminaires > LINE ECO > Recessed
Reset selected
Version
Normal
High efficiency
Normal-3 CCT Dial Switch
High efficiency-3 CCT Dial Switch
CCT
2700K
3000K
4000K
6500K
3000K-4200K-6200K
>80
>90
Typ.power
29W
45W
Label Type
COLORS
Customized Label
Single-Unit Inner Box Packaging
Prismatic
Carrier Style
No carrier
Black
White
Light Source Type
Constant Current Rigid PCB
Length
1200mm
1800mm
Dimming Method
Non-Dimming
1-10V Dimming
DALI Dimming
Input Voltage
AC200-240V
Holeless end cap
Ordering Code:
LLS-LE50FPXS-T-D
Qty
$ ** /SET
Ordering Code:
LLS-LE50FPXS-T-D
