BASIC CONFIGURATION

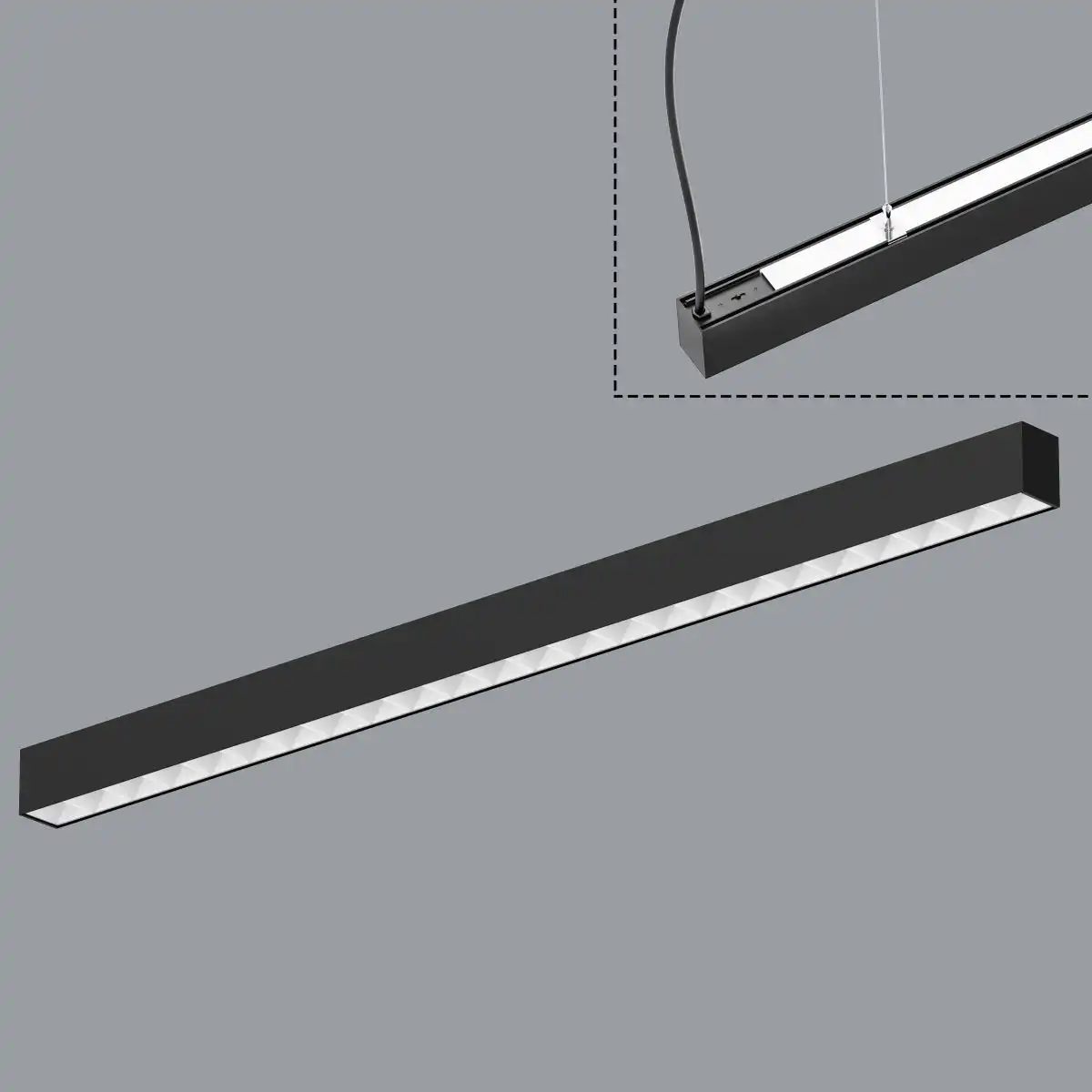

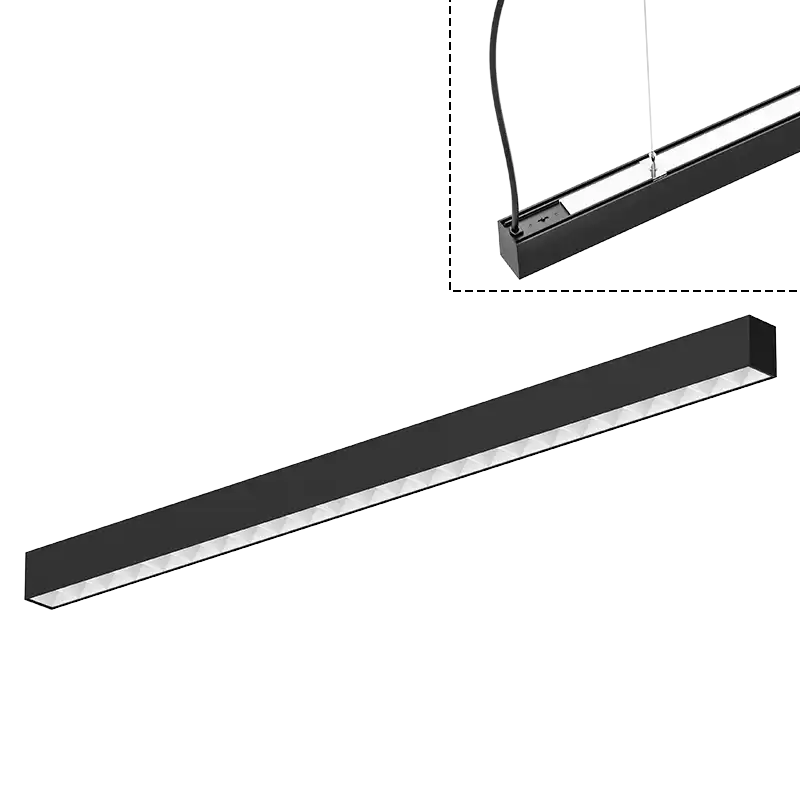

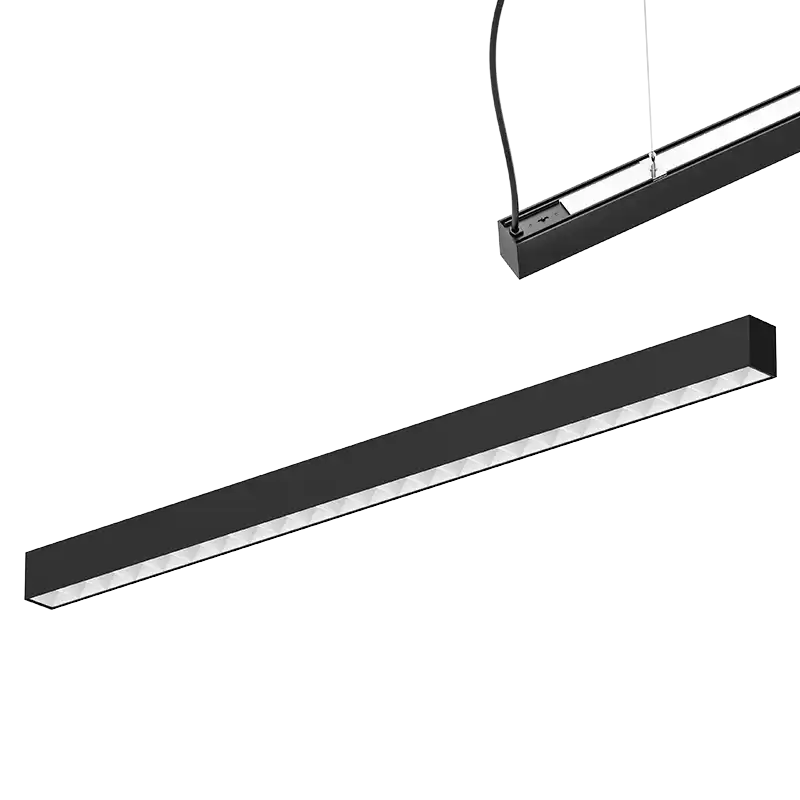

LH50G luminaire
luminaire entry cable 1.5M
≤1.2m luminaire included 2 PCS clips;
1.2m＜L≤2.5m luminaire included 3 PCS clips;

Features

·Material:AL6063-T5,spraying surface,anodizing
·Coating:Silver anodized,Black,White
·Length:1200,1800,2400mm optional
·Lighting direction:Upward and Downward
·Installaton:Pendant
·IP grade:IP20
·Application:Indoor
·Light efficiency:120LM/W
·UGR(X=4H,Y=8H):≤19
·SDCM:<3 Step (ANSI)
·CRI:80,90
·CCT:2700K,3000K4000K,6500K optional
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years

LH50G

Linear Lights > Luminaires > LINE ECO > Pendant-up&down

Reset selected

Version

  • Normal

CCT

  • 2700K

  • 3000K

  • 4000K

  • 6500K

CRI

  • >80

  • >90

Typ.power

  • 52W

  • 80W

  • 100W

Label Type

  • COLORS

  • Customized Label

Package

  • Single-Unit Inner Box Packaging

Diffuser Nature

  • Grating

Carrier Style

  • No carrier

Color

  • Black

  • White

Light Source Type

  • Constant Current Rigid PCB

Length

  • 1200mm

  • 1800mm

  • 2400mm

Dimming Method

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

Input Voltage

  • AC200-240V

End Cap Style

  • Holeless end cap

Ordering Code:

LLS-LH50GTXS(N)-T-D

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

LLS-LH50GTXS(N)-T-D
