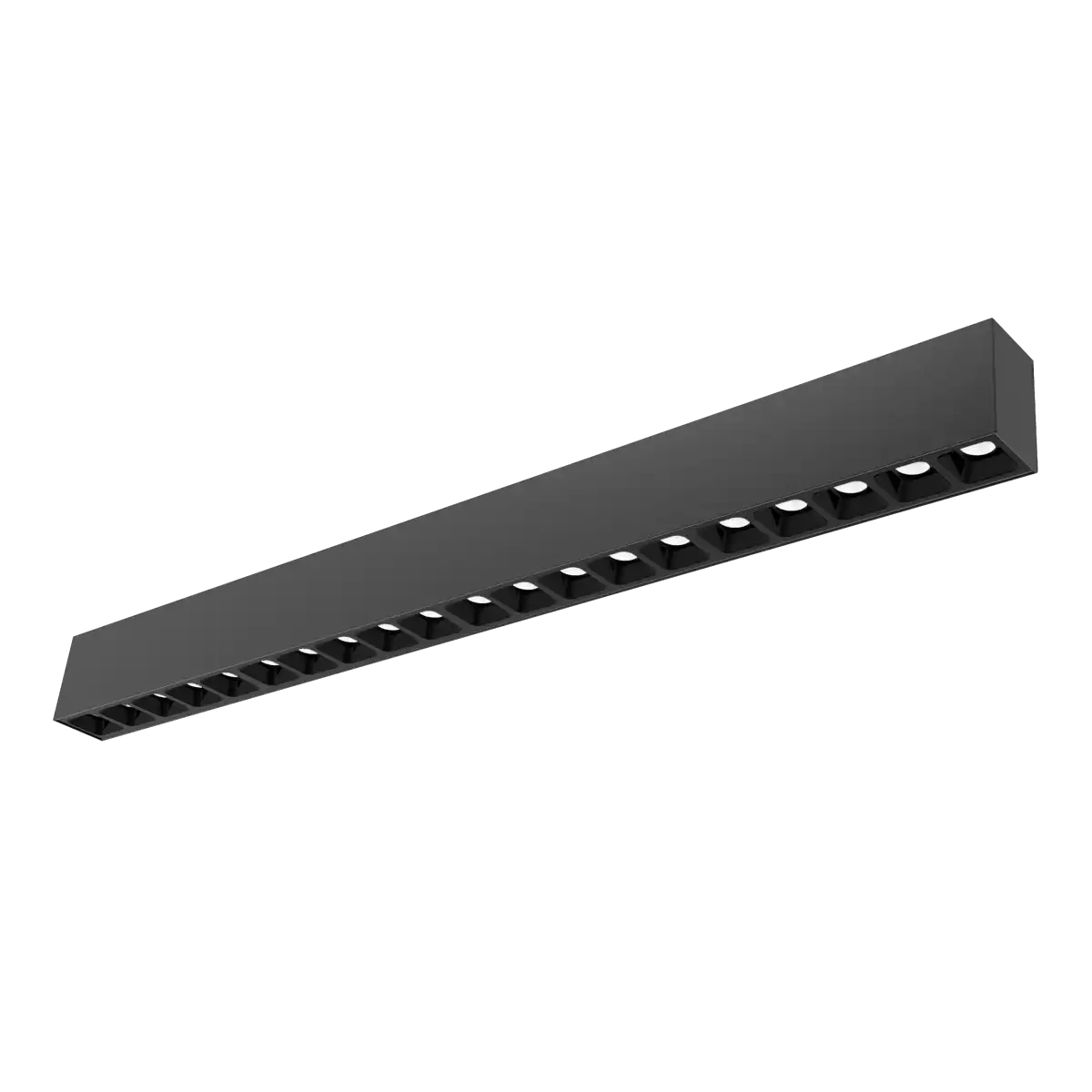

LH60G luminaire
luminaire entry cable 2M
Included 2pcs pendant clips
- EN
BASIC CONFIGURATION
Features
·Material：AL6063-T5，spraying surface
·Coating：Black(RAL9005)、White(RAL9003)
·Lighting direction: upward & downward
·Light efficiency：90LM/W
·Grille angle：24°/38° optional
·UGR: ≤ 10 (X=4H, Y=8H)
·Dimming method：Non/ DALI-2+PUSH/ 1-10V optional
·Length：1200mm/1800mm/2400mm optional (other length on request)
·CRI：80/90
·CCT：2700/3000/3500/4000/5000/6500/3000-6500 optional
·Input voltage：AC220-240V
·Application: Indoor
·Installation：Pendant
·IP grade：IP20
·Certification：CE、CB、UKCA、SAA、ROHS、Reach
·Warranty：5 years
·Coating：Black(RAL9005)、White(RAL9003)
·Lighting direction: upward & downward
·Light efficiency：90LM/W
·Grille angle：24°/38° optional
·UGR: ≤ 10 (X=4H, Y=8H)
·Dimming method：Non/ DALI-2+PUSH/ 1-10V optional
·Length：1200mm/1800mm/2400mm optional (other length on request)
·CRI：80/90
·CCT：2700/3000/3500/4000/5000/6500/3000-6500 optional
·Input voltage：AC220-240V
·Application: Indoor
·Installation：Pendant
·IP grade：IP20
·Certification：CE、CB、UKCA、SAA、ROHS、Reach
·Warranty：5 years
LH60G
Linear Lights > Luminaires > LINE60 > Pendant-up&down
Reset selected
Version
Normal
Emergency
3 CCT tunable(Dial switch)
CCT
2700K
3000K
3500K
4000K
5000K
6500K
2700K-6500K
>80
>90
Typ.power
37W
56W
74W
Label Type
COLORS
Customized Label
COLORS Individual
Grating 24°
Grating 38°
Carrier Style
Flat carrier
Yellow
White
Rose gold
Matt Orange
Matt Green
Matt Blue
Champagne Gold
Black
Light Source Type
Constant Current Rigid PCB
Length
1200mm
1800mm
2400mm
Dimming Method
Non-Dimming
1-10V Dimming
DALI Dimming
Holeless end cap
Ordering Code:
FS-T-D
Qty
$ ** /SET
Ordering Code:
FS-T-D
