BASIC CONFIGURATION

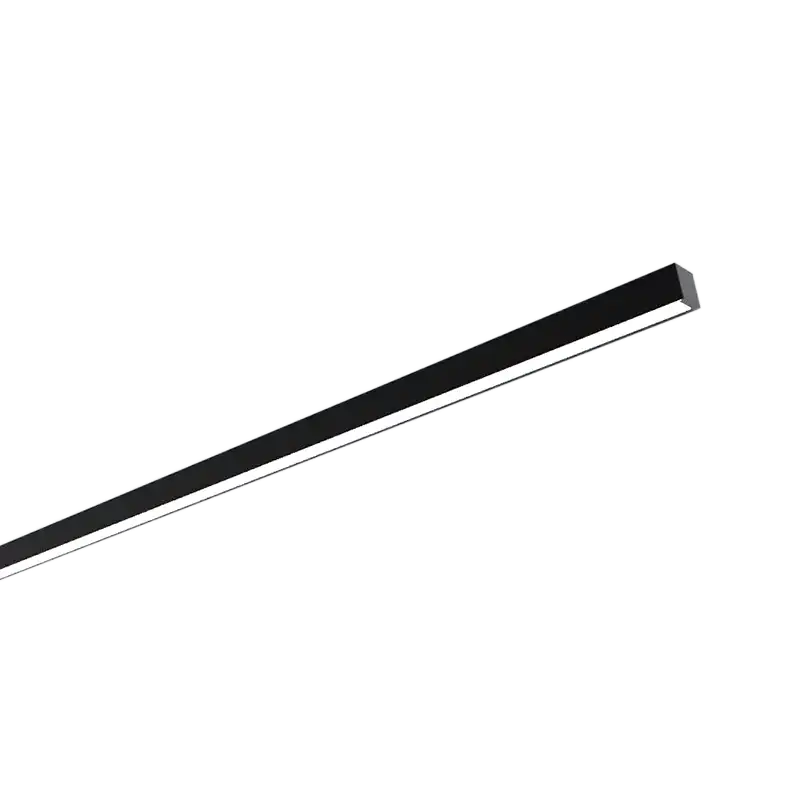

LS25FD luminaire
luminaire entry cable 2M
no power supply
Including 1SET pendant accessory(PE-J)
(1set silver pendant accessory include 1PCS 2m gray wire rope, 1PCS 2m 2-in-1 transparent cable, 2PCS small-head pearl chromium cable lockers, 2PCS silver fixing cable base, 4PCS crimping nickel screws
1set black pendant accessory include 1PCS 2m black wire rope, 1PCS 2m 2-in-1 black cable, 2PCS small-head black cable lockers, 2PCS black fixing cable base, 4PCS crimping black screws
Notice:Black luminaire use black pendant accessory;White/Silver luminaire use silver pendant accessory)

Features

·Material:AL6063-T5,spraying surface
·Coating:Black(RAL9005),White(RAL9003)
·Lighting direction: downward
·Light efficiency:105LM/W
·Dimming method:no power supply
·Length:600mm/1200mm/1500mm/1800mm/2400mm optional (other length on request)
·Color tolerance:SDCM≤3(ANSI)
·CRI:80/90
·CCT:2700/3000/3500/4000/5000/6500 optional
·Input voltage:DC24V
·Application: Indoor
·Installation:Pendant
·IP grade:IP20
·Certification:CE、ROHS、Reach
·Warranty:5 years

LS25FD

Linear Lights > Luminaires > SLIM25 > Pendant

Reset selected

CCT
  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 5000K

  • 6500K

CRI
  • >80

  • >90

Typ.power
  • 20W/M

Label Type
  • COLORS

  • Customized Label

Package
  • COLORS Individual

Diffuser Nature
  • Diffuser

Carrier Style
  • No carrier

Color
  • Yellow

  • White

  • Rose gold

  • Matt Orange

  • Matt Green

  • Matt Blue

  • Champagne Gold

  • Black

Light Source Type
  • Flexible strip

Length
  • 600mm

  • 1200mm

  • 1500mm

  • 1800mm

  • 2400mm

  • Customized Length

Dimming Method
  • No Power

End Cap Style
  • Holeless end cap

Ordering Code:

LLS-LS25FDXS-F20X-D

Qty

$ ** /SET

Ordering Code:

LLS-LS25FDXS-F20X-D
