BASIC CONFIGURATION

MT20S-42_Module
Required track installation
Including electrical conector
Only some tracks of listed brands are compatible：Powergear, Stucchi

Features

· Material:AL1070,spraying surface
· Coating: Black (RAL9005)/White (RAL9003)
· IP grade: IP20
· CCT: 2700K,3000K,4000K,3000K-3800K-5000K optional
· CRI: 90
· SDCM(Light source):≤3 Step(ANSI)
· Beam angle: 15°,24°,28°,36°,50° optional
· Light efficiency: 81LM/W optional
· Input voltage: DC24-48V,DC48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

MT20S-42

Track Lights > Low-voltage > MagTrack 20 > Spotlight Module

Reset selected

Version

  • Normal

  • 3 CCT tunable(Dial switch)

CCT

  • 2700K

  • 3000K

  • 4000K

  • 3000K-3800K-5000K

CRI

  • >90

Beam Angle

  • 15°

  • 24°

  • 28°

  • 36°

  • 50°

Typ.power

  • 6W

Label Type

  • COLORS

  • Customized Label

Color

  • White

  • Black

Inner Ring Color

  • Black

Length

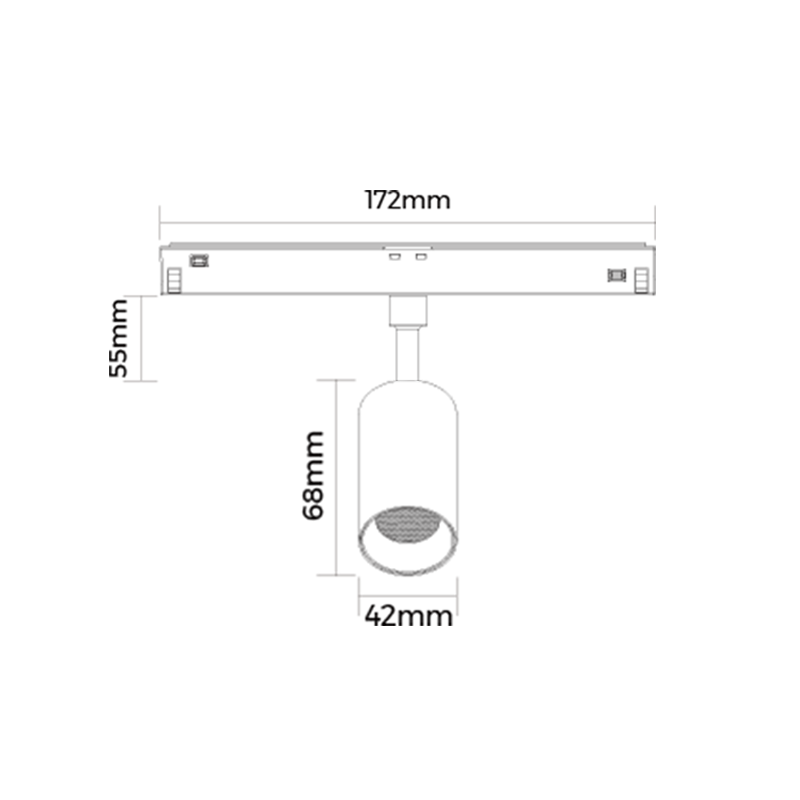

  • φ42mm Spotlight

Dimming Method

  • Non-Dimming

  • DALI Dimming

  • Tuya-Bluetooth Mesh Dimming

Input Voltage

  • DC48V

  • DC24-48V

Optical Accessory

  • No Honeycomb

  • Honeycomb

User Manual

  • EN

Ordering Code:

TLS-MT20S42-0690B

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

TLS-MT20S42-0690B
