BASIC CONFIGURATION

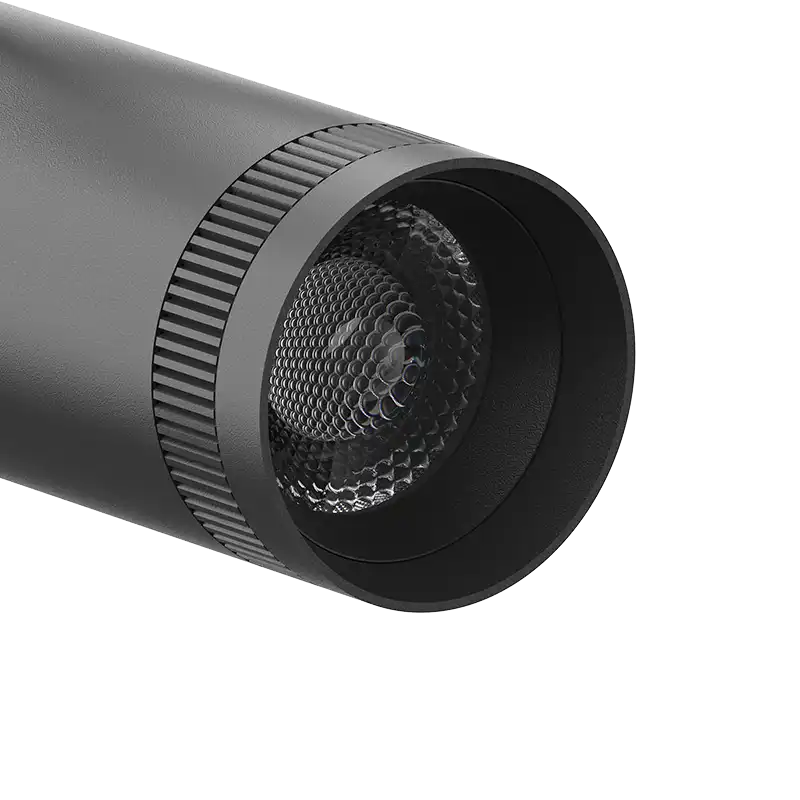

MT20SZ-45_Module

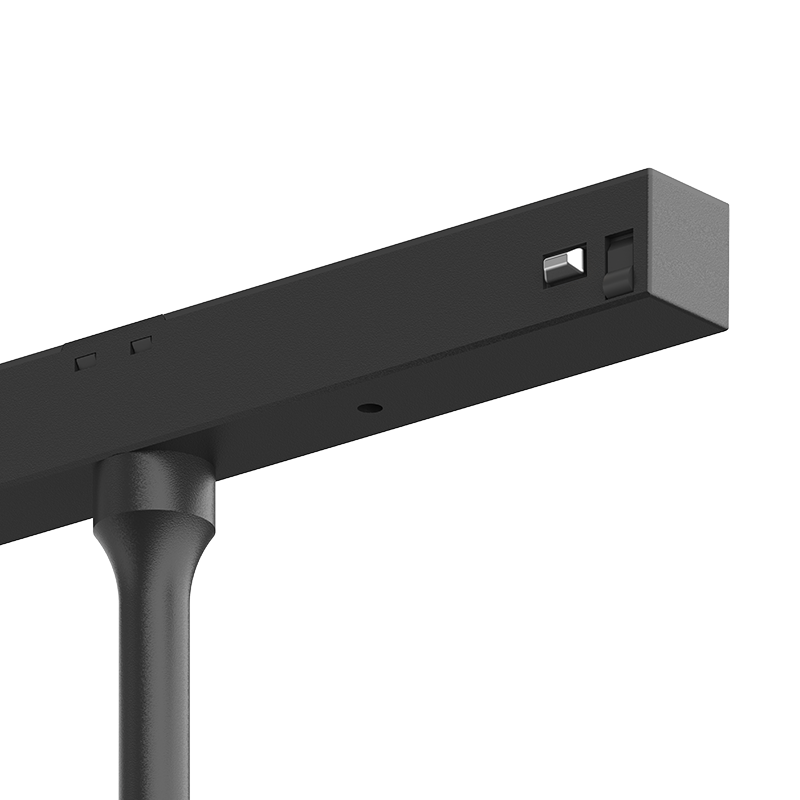

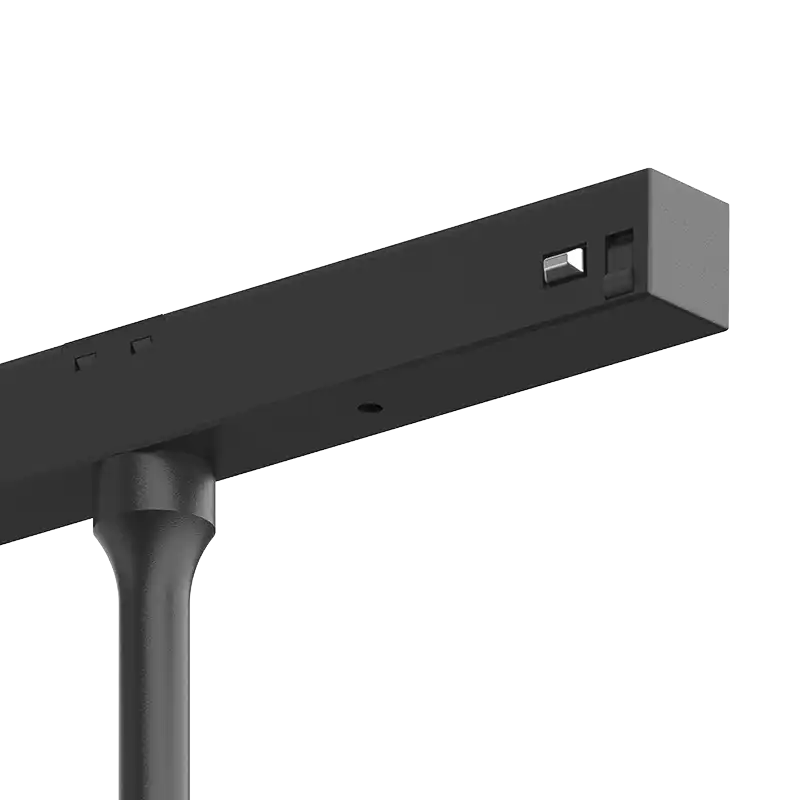

Required track installation
Including electrical conector
Only some tracks of listed brands are compatible：Powergear, Stucchi

Features

· Material:AL1070,spraying surface
· Coating: Black (RAL9005)/White (RAL9003)
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source):≤3 Step(ANSI)

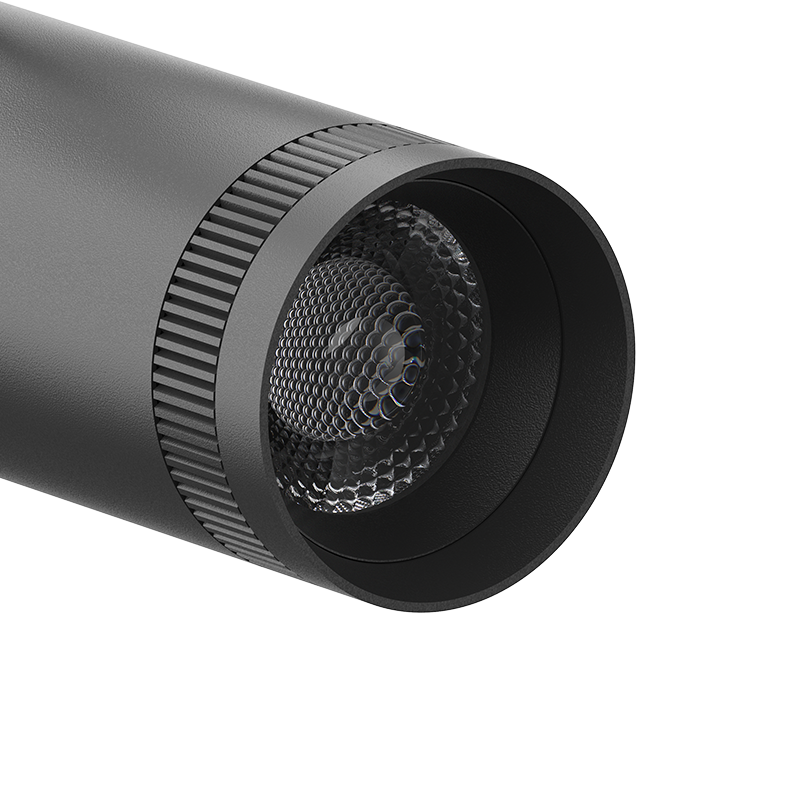

· Beam angle: 15°-45° adjustable
· Light efficiency: 75LM/W optional
· Input voltage: DC48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI

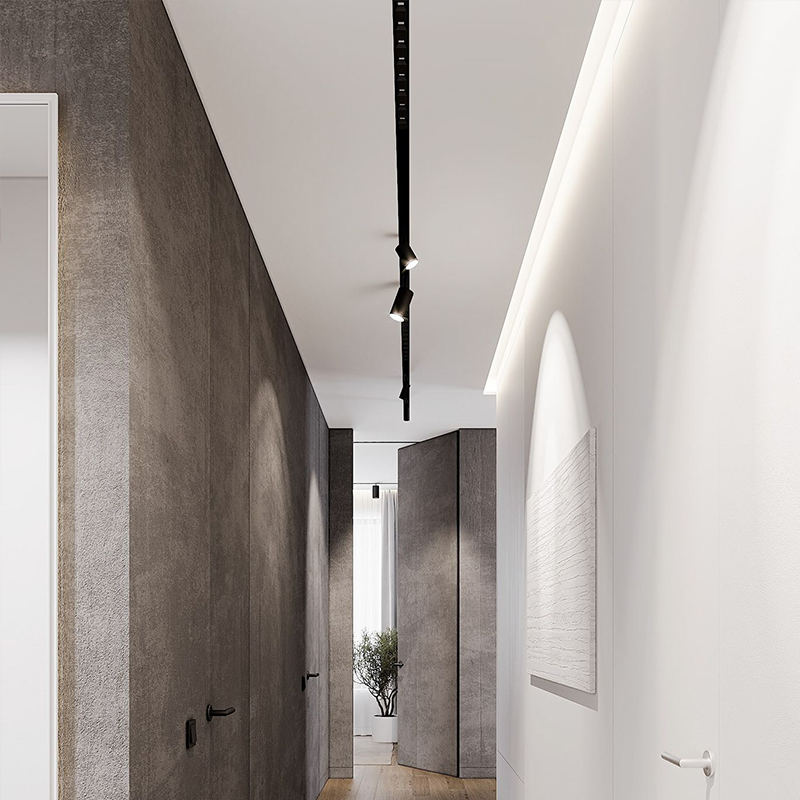

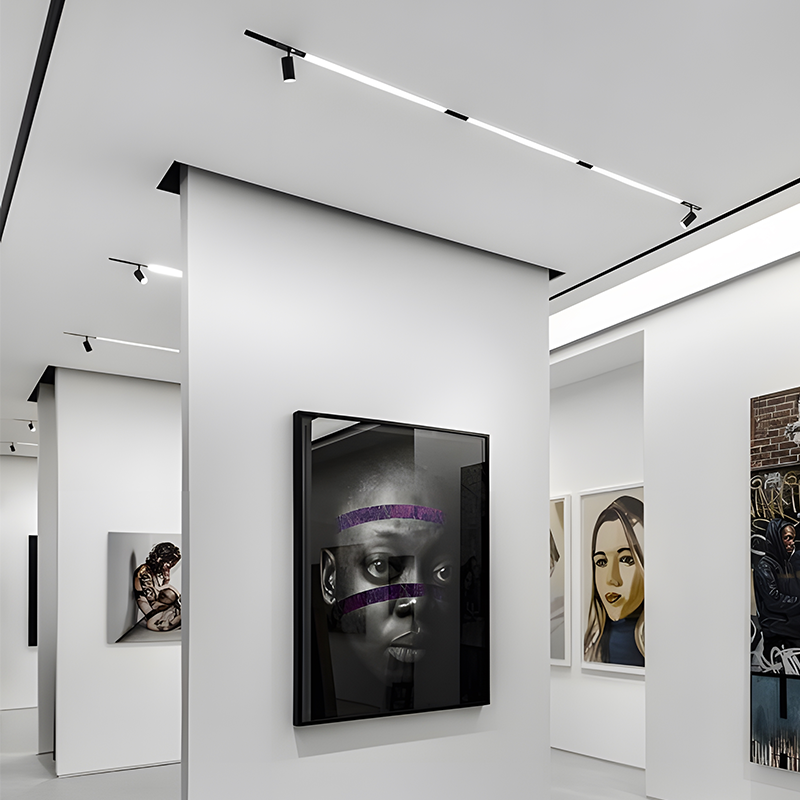

· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

MT20SZ-45

Track Lights > Low-voltage > MagTrack 20 > Spotlight Module

Reset selected

CCT

  • 2700K

  • 3000K

  • 4000K

CRI

  • >90

Beam Angle

  • 15°-45° Angle Adjustable

Typ.power

  • 5W

Label Type

  • COLORS

  • Customized Label

Color

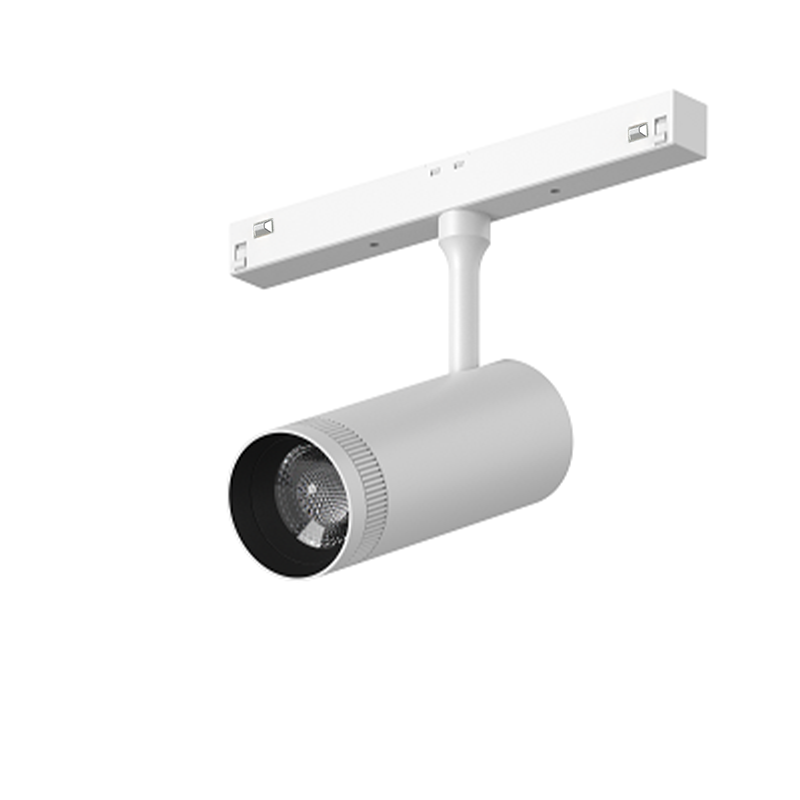

  • White

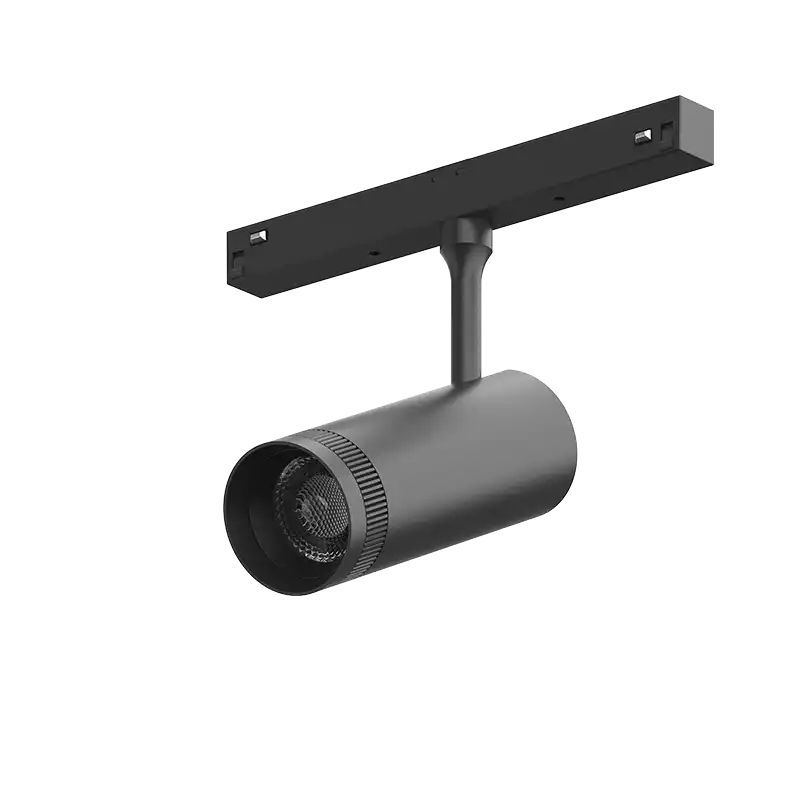

  • Black

Inner Ring Color

  • Black

Length

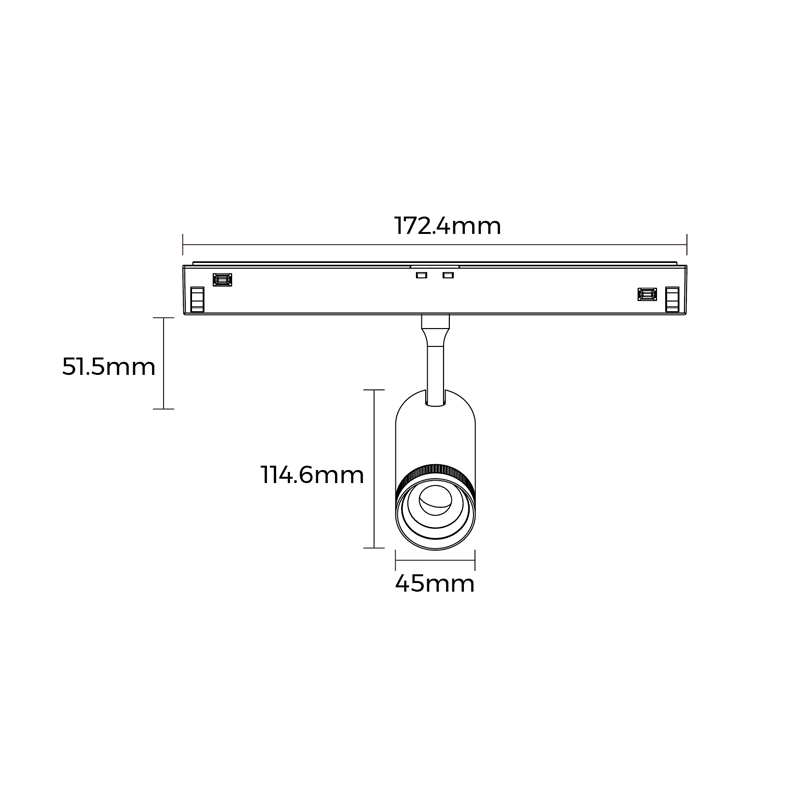

  • φ45mm Zoom Spotlight

Dimming Method

  • Non-Dimming

  • DALI Dimming

  • Tuya-Bluetooth Mesh Dimming

Input Voltage

  • DC48V

User Manual

  • EN

Ordering Code:

TLS-MT20SZ45-590B1B

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

TLS-MT20SZ45-590B1B
