BASIC CONFIGURATION

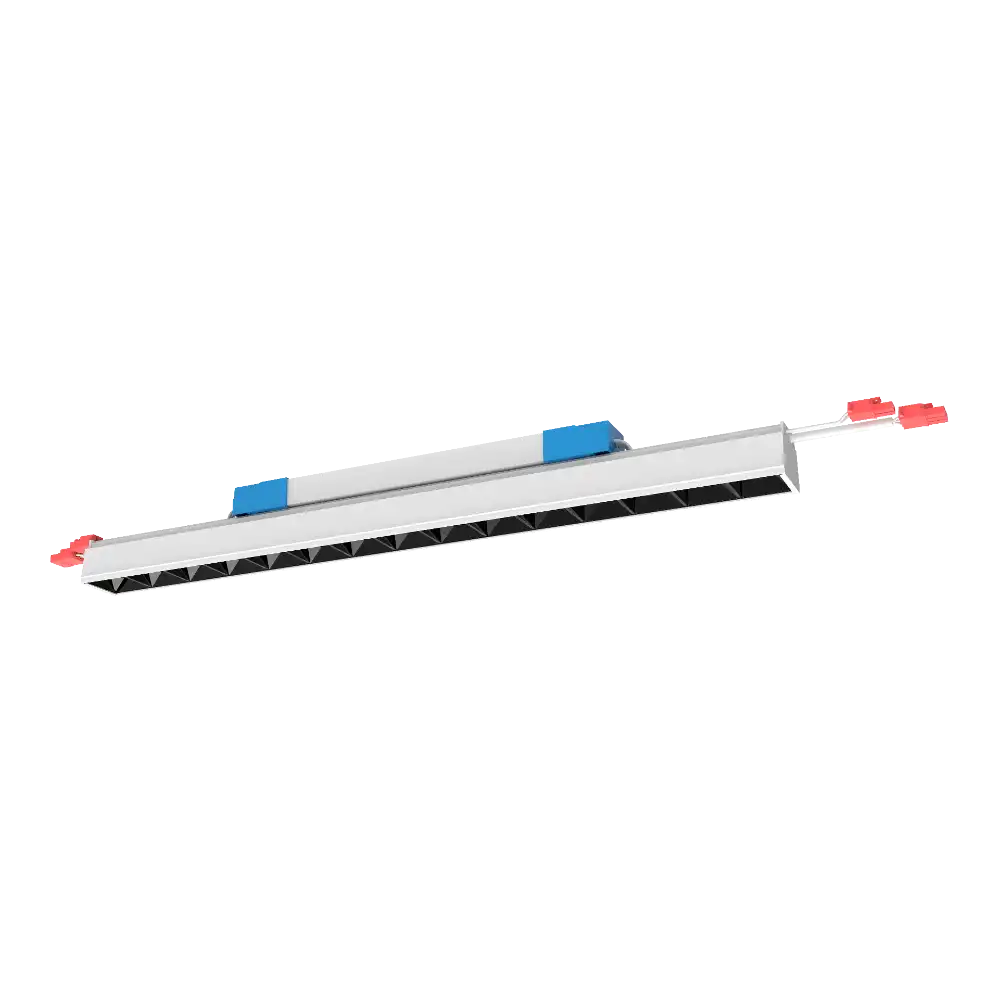

S40G_Module(AC220V)
Including power supply
no application accessories

Features

·Material：AL6063-T5，spraying surface
·Coating：Black(RAL9005)、White(RAL9003)
·Lighting direction: downward
·Light efficiency：80/100 LM/W
·Grille angle：18°/30°/45° optional
·UGR: ≤10/≤13 (X=4H, Y=8H)
·Dimming method：Non/ DALI-2+PUSH/ 1-10V optional
·Length：600mm/1200mm/1500mm/1700mm/2300mm optional (other length on request)
·CRI：80/90
·CCT：2700/3000/3500/4000/5000/6500/2700-6500K optional
·Input voltage：AC220-240V
·Application: Indoor
·Installation：Pendant、Ceiling
·IP grade：IP20
·Certification：CE、UKCA、ROHS、Reach
·Warranty：5 years

S40G

Linear Lights > Modular > TLS-S40 > Linear Module

Reset selected

Version

  • Normal

  • 3 CCT tunable(Dial switch)

CCT

  • 2700K

  • 3000K

  • 3500K

  • 4000K

  • 5000K

  • 6500K

  • 2700K-6500K

CRI

  • >80

  • >90

Typ.power

  • 15W

  • 30W

  • 40W

  • 44W

  • 60W

Label Type

  • COLORS

  • Customized Label

Package

  • COLORS Individual

Diffuser Nature

  • Grating 18°

  • Grating 30°

  • Grating 45°

Carrier Style

  • No carrier

Color

  • White

  • Black

Light Source Type

  • Constant Current Rigid PCB

Length

  • 600mm

  • 1200mm

  • 1500mm

  • 1700mm

  • 2300mm

Dimming Method

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

End Cap Style

  • Holeless end cap

Ordering Code:

XS-T-D

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

XS-T-D
