BASIC CONFIGURATION

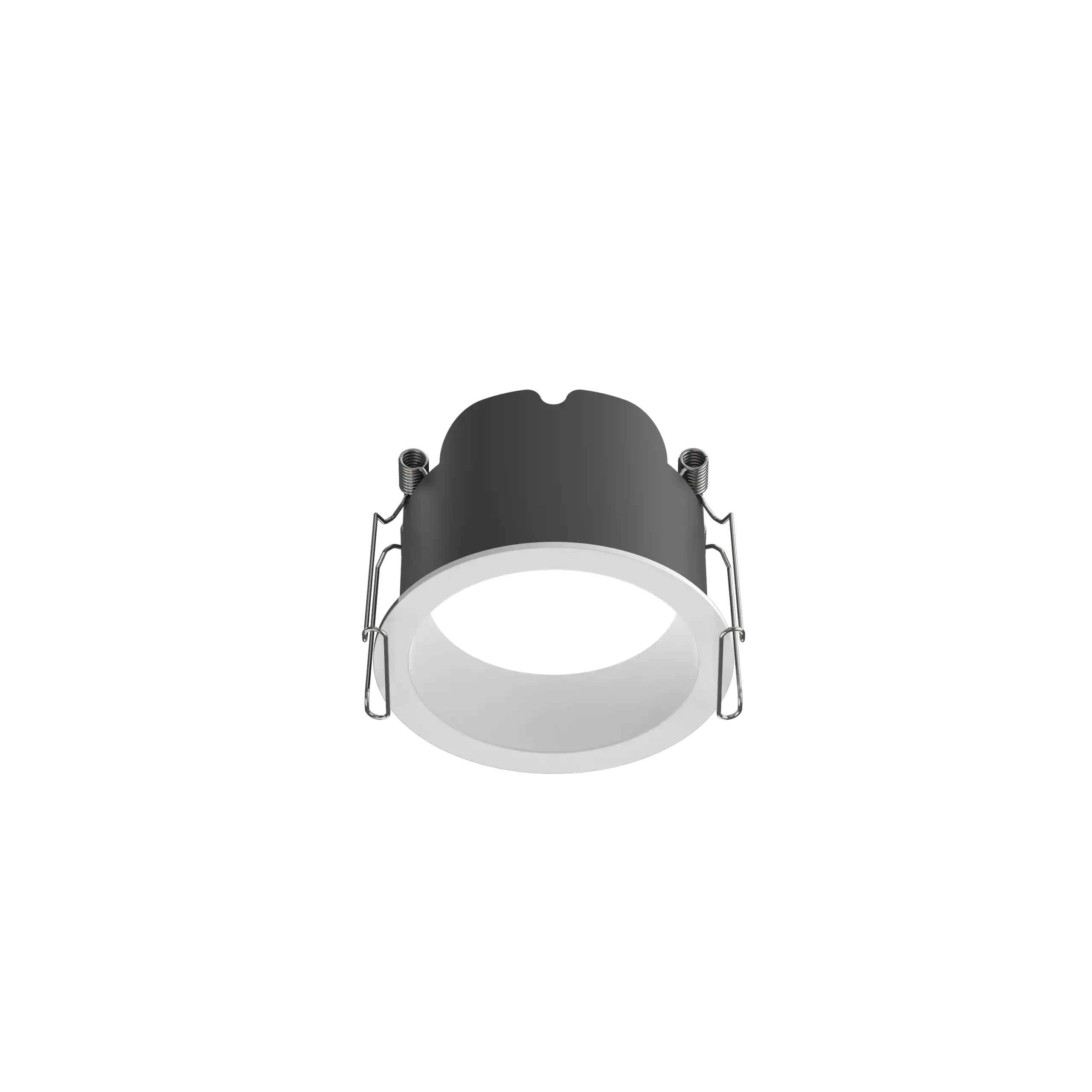

SE75D luminaire
Power supply optional
no application accessories

Features

·Material：AL6063-T5，spraying surface
·Coating：White(RAL9003) optional
·Lighting direction: downward
·Light efficiency：92LM/W
·Spotlight angle：80° optional
·Opening size：φ75mm
·Dimming method：Non/ DALI/ 1-10V optional
·Color tolerance：SDCM≤5(ANSI)
·CRI：90
·CCT：2700/3000/4000/3000-5000K optional
·Input voltage：AC220-240V
·Application: Indoor
·Power installation：External
·Installation：Recessed
·IP grade：IP20/Front Part IP44
·Certification：CE、UKCA、ROHS、Reach
·Warranty：5 years

SE75D

Downlights > Recessed > SPARK > Recessed

Reset selected

Version

  • Normal

  • 3 CCT tunable(Dial switch)

CCT

  • 2700K

  • 3000K

  • 4000K

  • 3000K-5000K

CRI

  • >90

Beam Angle

  • 80°

Typ.power

  • 6W

Entry Cable

  • With cable of drive input

  • Without cable of drive input

  • With junction box

Label Type

  • COLORS

  • Customized Label

Color

  • White

Length

  • φ75mm Diffuser Spotlight

Dimming Method

  • No Power

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

IP Grade

  • IP20

  • IP44

User Manual

  • EN

  • CN

Ordering Code:

DL-SE75D069W80

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

DL-SE75D069W80
