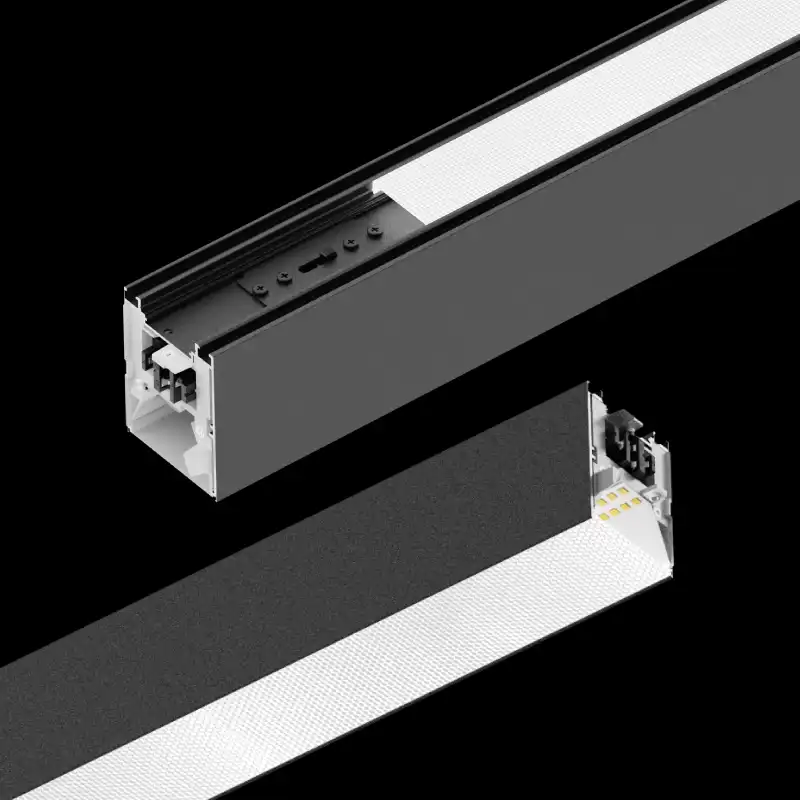

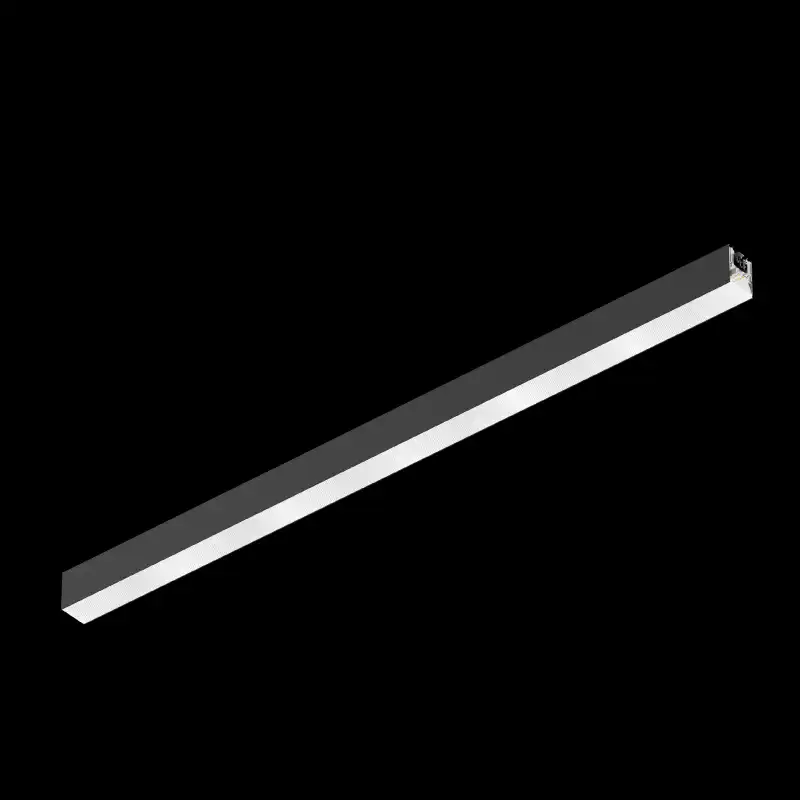

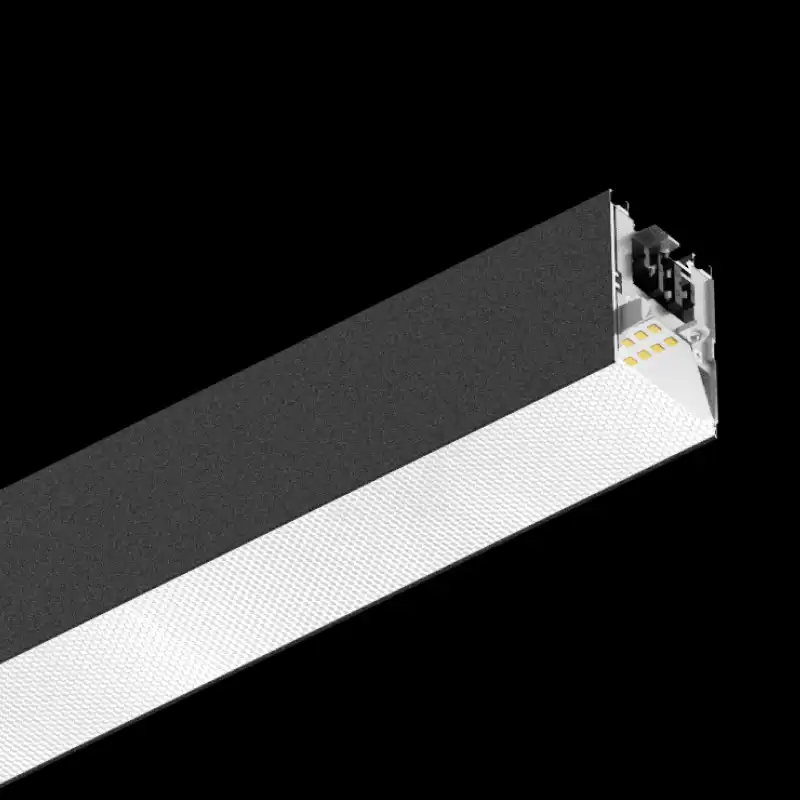

BH50FP luminaire
L≤1.2m luminaire included 2 PCS clips;
1.2m＜L≤1.8m luminaire included 3 PCS clips;
*luminaire has no entry cable and end cap；
- EN
BASIC CONFIGURATION
Features
·Material:AL6063-T5,spraying surface
·Coating:Black,White
·Length:1200,1800mmoptional
·Lighting direction:Upward and Downward
·Installaton:Pendant
·IP grade:IP20
·Application:Indoor
·Light efficiency:110LM/W(Normal),125LM/W(High efficiency-3CCT Dial switch)
125LM/W(High efficiency),105LM/W(Normal-3CCT Dial switch)
·UGR(X=4H,Y=8H):≤19
·SDCM:<3 Step (ANSI)
·CRI:80,90
·CCT:2700K,3000K,4000K,6500K,3000-4200-6100K optional
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years
·Coating:Black,White
·Length:1200,1800mmoptional
·Lighting direction:Upward and Downward
·Installaton:Pendant
·IP grade:IP20
·Application:Indoor
·Light efficiency:110LM/W(Normal),125LM/W(High efficiency-3CCT Dial switch)
125LM/W(High efficiency),105LM/W(Normal-3CCT Dial switch)
·UGR(X=4H,Y=8H):≤19
·SDCM:<3 Step (ANSI)
·CRI:80,90
·CCT:2700K,3000K,4000K,6500K,3000-4200-6100K optional
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years
BH50FP
Linear Lights > Luminaires > LINE ECO > Pendant-up&down
Reset selected
Version
Normal
High efficiency

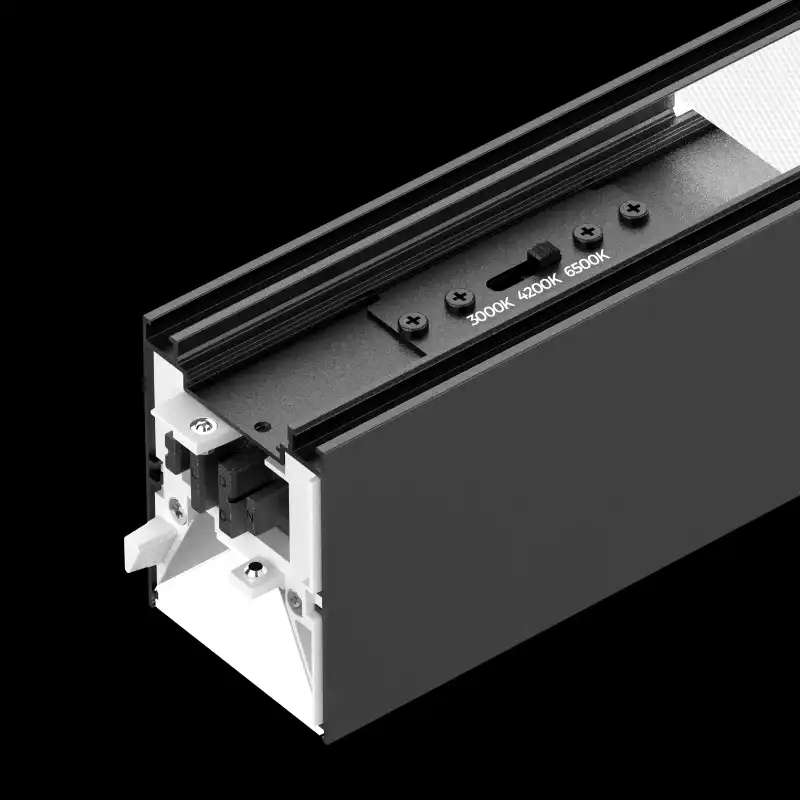

Normal-3 CCT Dial Switch
High efficiency-3 CCT Dial Switch
CCT
2700K
3000K
4000K
6500K
3000K-4200K-6500K
>80
>90
Typ.power
58W
90W
Label Type
COLORS
Customized Label
Single-Unit Inner Box Packaging
Prismatic
Carrier Style
No carrier
Matte Black
Matte White
Light Source Type
Constant Current Rigid PCB
Length
1200mm
1800mm
Dimming Method
Non-Dimming
1-10V Dimming
DALI Dimming
Input Voltage
AC220-240V
No end cap
Ordering Code:
LLS-BH50FPXX-T-D
Qty
$ ** /SET
Ordering Code:
LLS-BH50FPXX-T-D
