BASIC CONFIGURATION

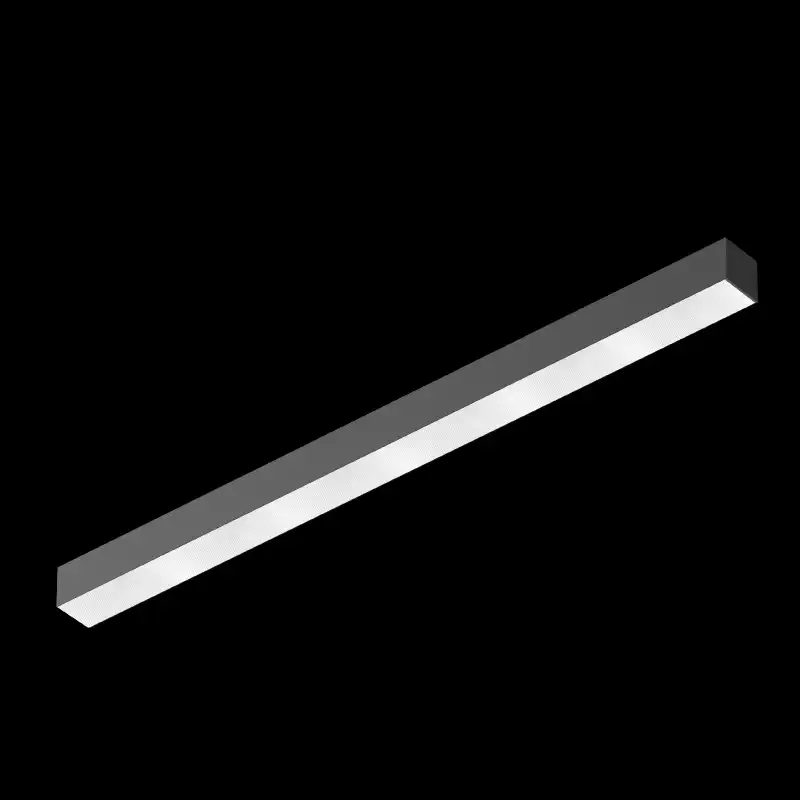

DH70FP luminaire
1PCS end cap
L≤1.2m luminaire included 2 PCS clips;
1.2m＜L≤1.8m luminaire included 3 PCS clips;
*luminaire has no entry cable；

Features

·Material:AL6063-T5,spraying surface
·Coating:Matte black,Matte white
·Length:1200,1800mmoptional
·Lighting direction:Upward and Downward

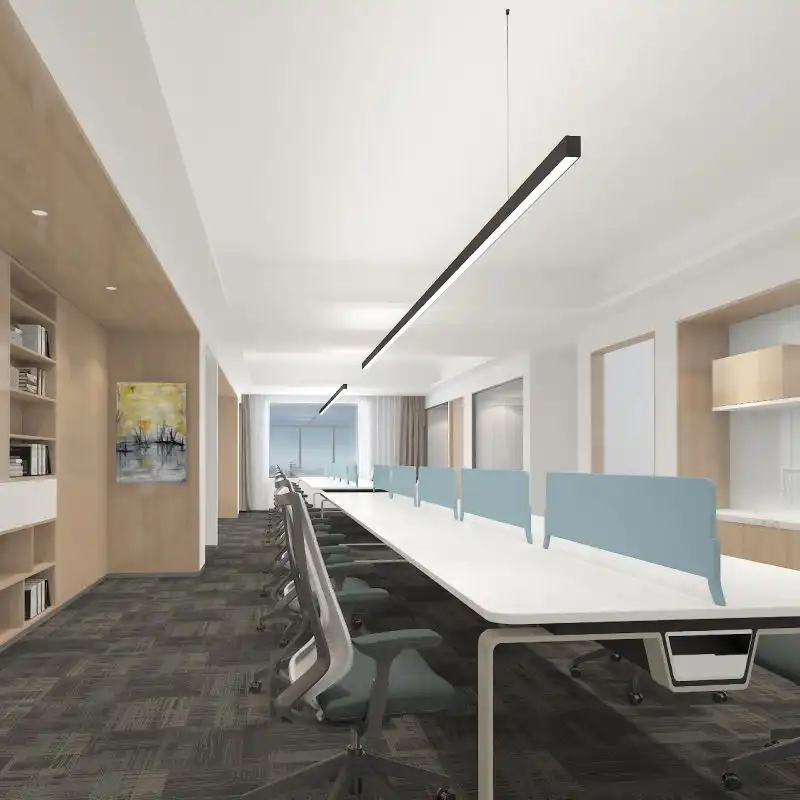

·Installaton:Pendant
·IP grade:IP20
·Application:Indoor
·Light efficiency:105LM/W(Normal),130LM/W(High efficiency-3CCT Dial switch)
130LM/W(High efficiency),110LM/W(Normal-3CCT Dial switch)
·UGR(X=4H,Y=8H):≤19
·SDCM:<3 Step (ANSI)
·CRI:80,90
·CCT:2700,3000,4000,6500,3000-4200-6200K optional
·Dimming:Non,1-10V,DALI2 optional
·Certification:CE,UKCA,ROHS,Reach
·Warranty:5 years

DH70FP

Linear Lights > Luminaires > LINE ECO > Pendant-up&down

Reset selected

Version

  • Normal

  • High efficiency

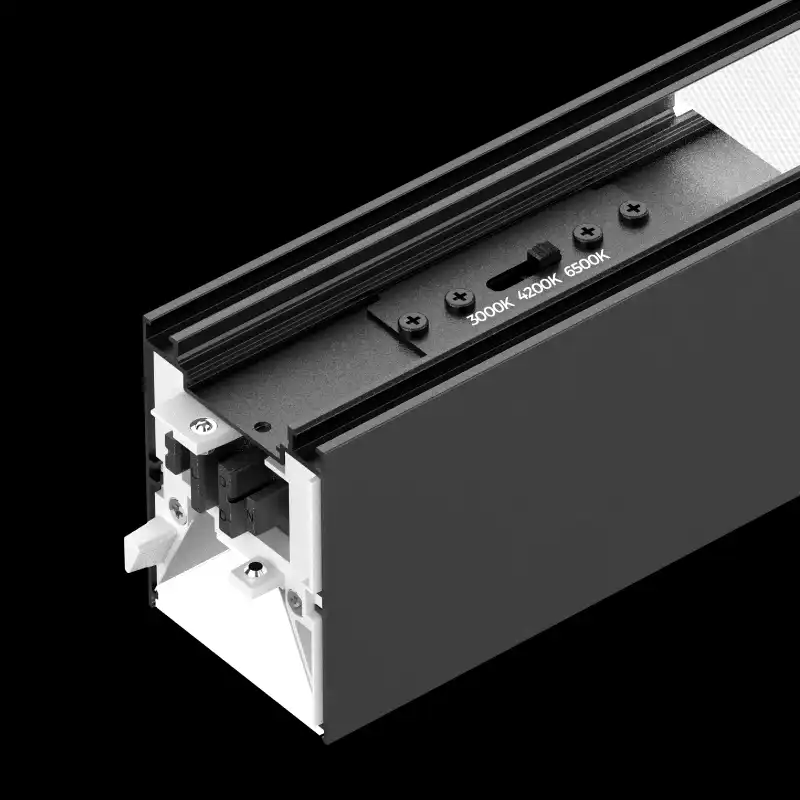

  • Normal-3 CCT Dial Switch

  • High efficiency-3 CCT Dial Switch

CCT

  • 2700K

  • 3000K

  • 4000K

  • 6500K

  • 3000K-4200K-6500K

CRI

  • >80

  • >90

Typ.power

  • 70W

  • 106W

Label Type

  • COLORS

  • Customized Label

Package

  • Single-Unit Inner Box Packaging

Diffuser Nature

  • Prismatic

Carrier Style

  • No carrier

Color

  • Matte Black

  • Matte White

Light Source Type

  • Constant Current Rigid PCB

Length

  • 1200mm

  • 1800mm

Dimming Method

  • Non-Dimming

  • 1-10V Dimming

  • DALI Dimming

Input Voltage

  • AC220-240V

End Cap Style

  • Holeless end cap

Ordering Code:

LLS-DH70FPXS-T-D
