BASIC CONFIGURATION

HTM53SL-62_Module(DC24-48V&DC48V)
No Including power supply
no application accessories

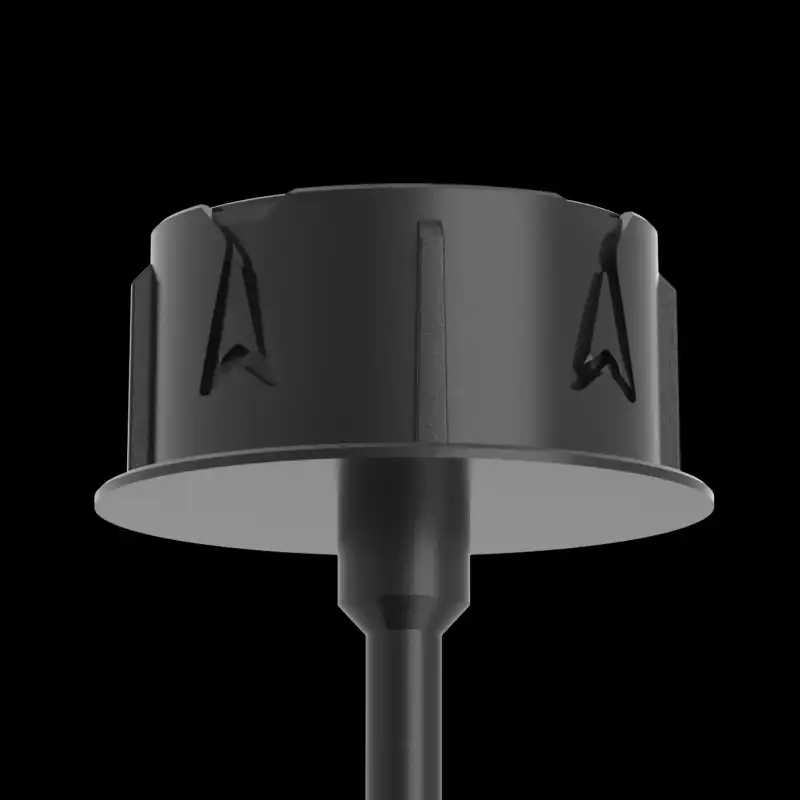

Required for use with Base, Base needs to be ordered separately

Features

·Installation: Ceiling
·Material: AL1070
·Coating: Black
·Dimming method: Non/DALI-2/CASAMBI
·Input voltage: DC24-48V&DC48V
·SDCM: <3 Step (ANSI)
·UGR: <13
·CRI: 90
·CCT: 2700K,3000K,4000K,3000K-3800K-5000K  optional
·Beam angle: 12°,15°,20°,24°,30°,36°,45°,50°
·Application: Indoor
·IP grade: IP20
·Warranty: 5 years
·Certification: CE、UKCA、ROHS、Reach

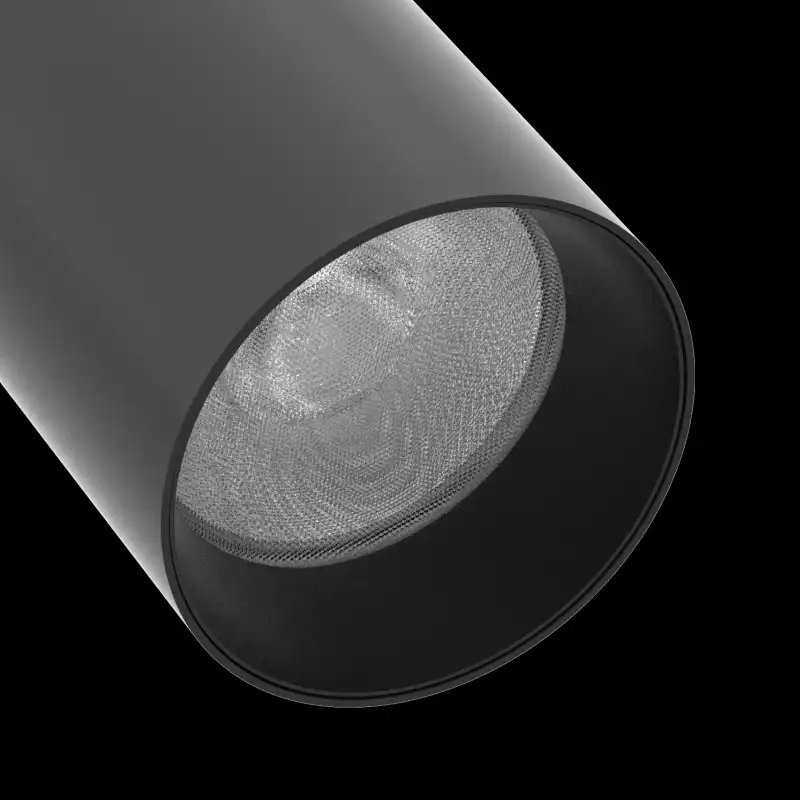

HTM53SL-62

Downlights > Plug-in system > HOLA T > Spotlight Module

Reset selected

Version

  • Normal

  • 3 CCT tunable(Dial switch)

CCT

  • 2700K

  • 3000K

  • 4000K

  • 3000K-3800K-5000K

CRI

  • >90

Beam Angle

  • 12°

  • 15°

  • 20°

  • 24°

  • 30°

  • 36°

  • 45°

  • 50°

Typ.power

  • 15W

Label Type

  • COLORS

  • Customized Label

Color

  • Black

Inner Ring Color

  • Black

Length

  • φ62mm Spotlight

Dimming Method

  • Non-Dimming

  • DALI Dimming

Input Voltage

  • DC48V

  • DC24-48V

Optical Accessory

  • No Honeycomb

  • Honeycomb

Ordering Code:

FD-HTM53SL62-1590-BB

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

FD-HTM53SL62-1590-BB
