MT11FD_Module
Required track installation
Including electrical connector
Adapted track brand:Stucchi(MICRO series)
- EN
BASIC CONFIGURATION
Features
· Material:,AL6063,spraying surface
· Coating: Black (RAL9005)
· Length: 150mm/300mm optional
· IP grade: IP20
· CCT: 2700,3000,4000K optional
· CRI: 90
· SDCM(Light source):≤3 Step
· Light efficiency: 30 LM/W,31 LM/W
· Input voltage: DC48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years
· Coating: Black (RAL9005)
· Length: 150mm/300mm optional
· IP grade: IP20
· CCT: 2700,3000,4000K optional
· CRI: 90
· SDCM(Light source):≤3 Step
· Light efficiency: 30 LM/W,31 LM/W
· Input voltage: DC48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

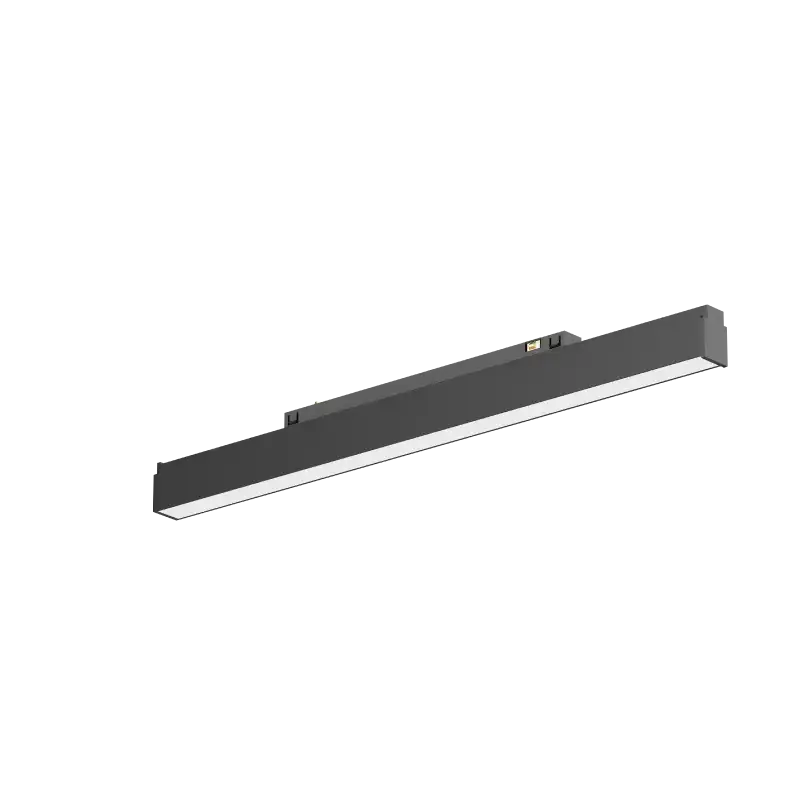

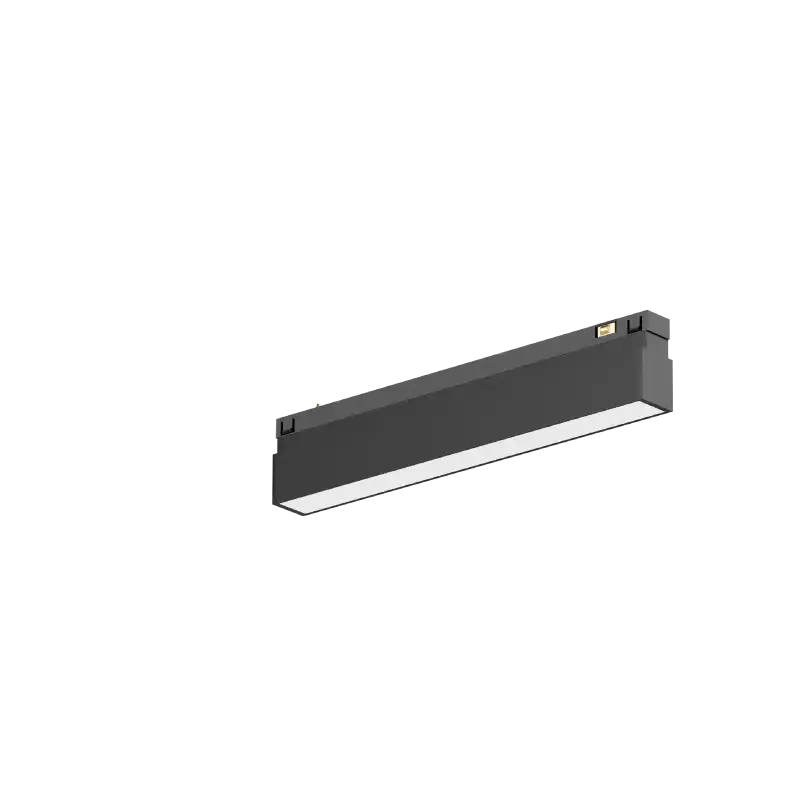

MT11FD
Track Lights > Low-voltage > MicroTrack 11 > Linear Module
Reset selected
CCT
2700K
3000K
4000K
>90
110°
Typ.power
5W
10W
Label Type
COLORS
Customized Label
Diffuser
Black
Length
300mm
150mm
Dimming Method
Non-Dimming
DALI Dimming
Tuya-Bluetooth Mesh Dimming
Input Voltage
DC48V
Ordering Code:
TLS-MT11FD90F1BW
Qty
$ ** /SET
Ordering Code:
TLS-MT11FD90F1BW
