BASIC CONFIGURATION

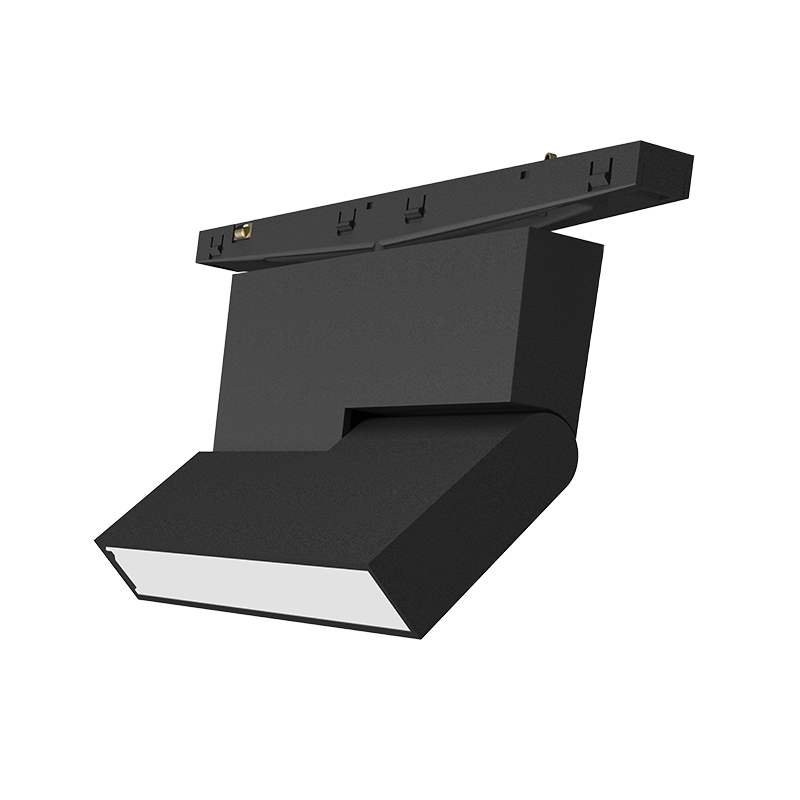

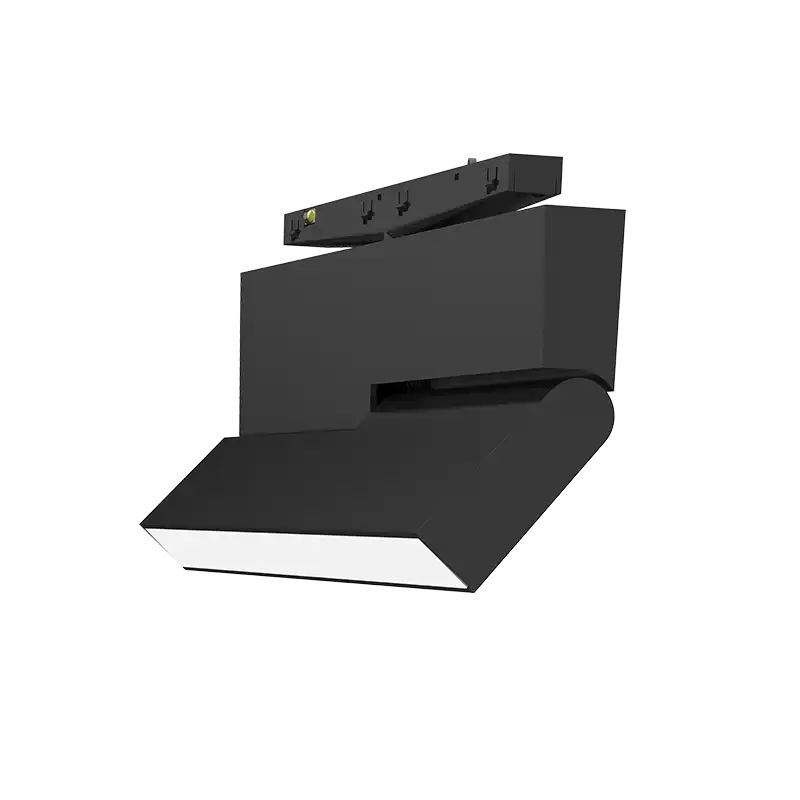

MT11FD(A)_Module
Required track installation
Including electrical connector
Adapted track brand:Stucchi(MICRO series)

Features

· Material: ,AL6063,spraying surface
· Coating: Black (RAL9005)
· Length: 110mm/220mm optional
· IP grade: IP20
· CCT: 3000,4000K optional
· CRI: 90
· SDCM(Light source): ≤3 Step
· Light efficiency: 30 LM/W
· Input voltage: DC48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

MT11FD(A)

Reset selected

CCT

  • 3000K

  • 4000K

CRI

  • >90

Beam Angle

  • 110°

Typ.power

  • 7W

  • 14W

Label Type

  • COLORS

  • Customized Label

Color

  • Black

Length

  • 110mm

  • 220mm

Dimming Method

  • Non-Dimming

  • DALI Dimming

  • Tuya-Bluetooth Mesh Dimming

Input Voltage

  • DC48V

Ordering Code:

90F1BW

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

90F1BW
