BASIC CONFIGURATION

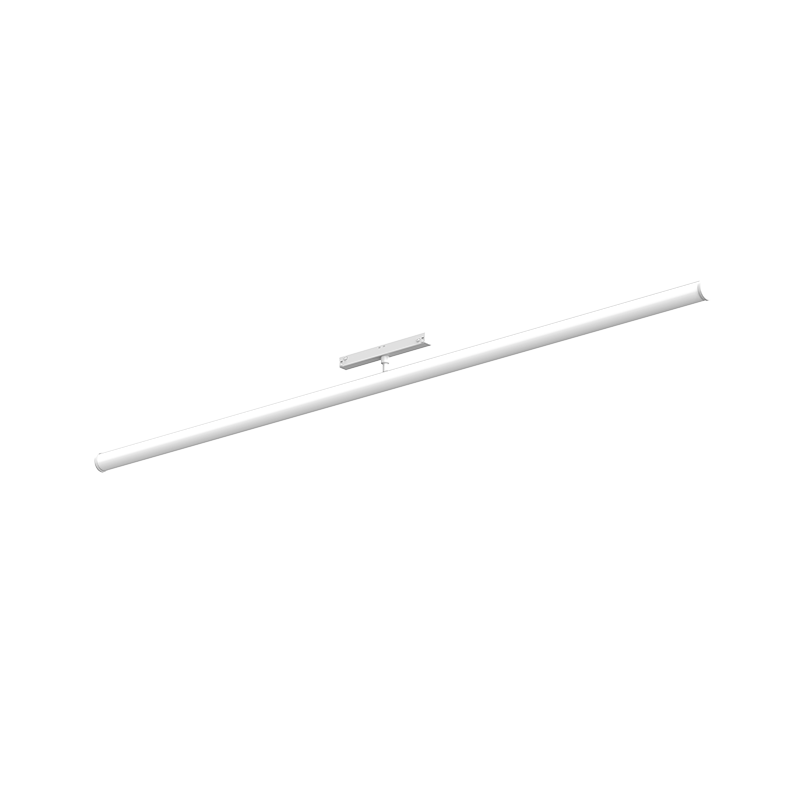

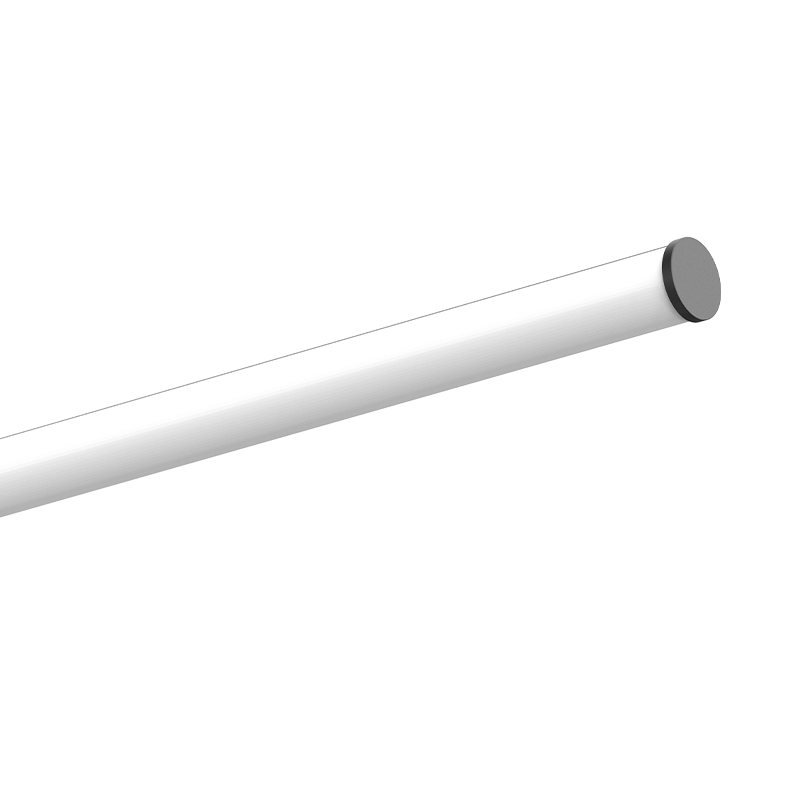

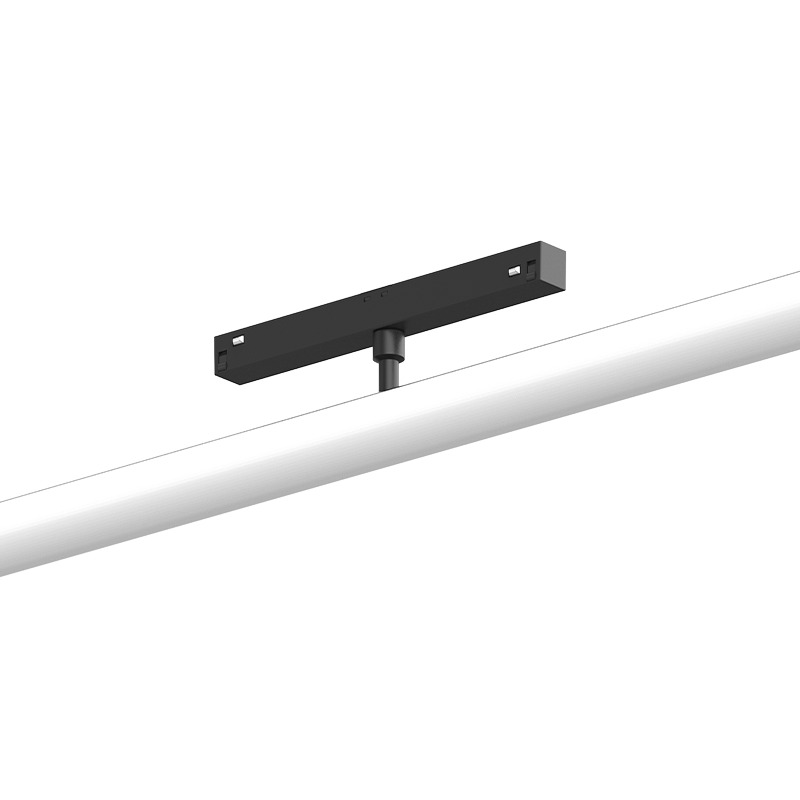

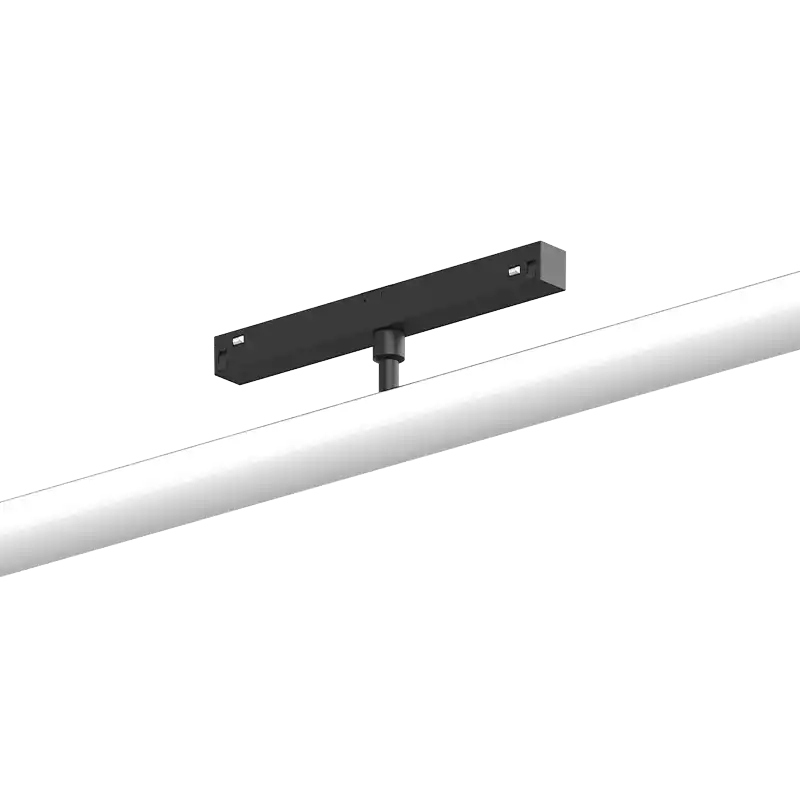

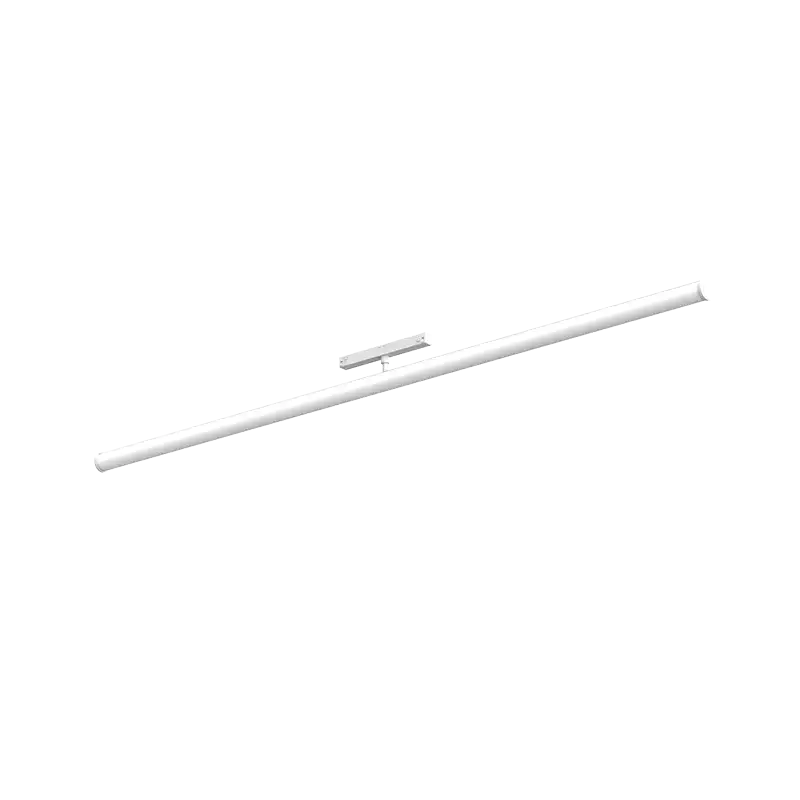

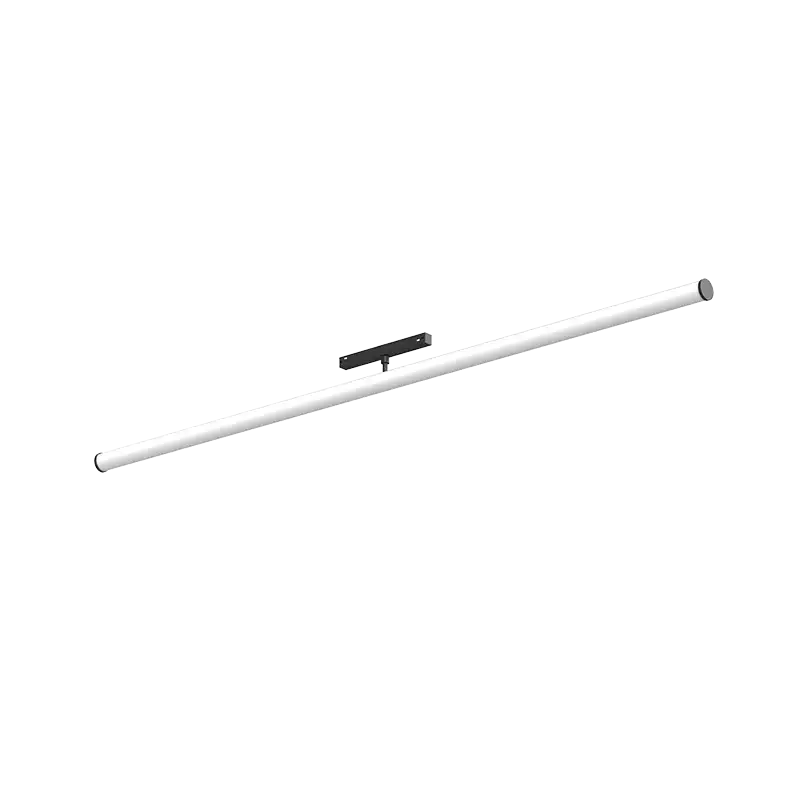

MT20CD_Module
Required track installation
Including electrical conector
Only some tracks of listed brands are compatible：Powergear, Stucchi

Features

· Material:AL6063-T5,spraying surface
· Coating: Black (RAL9005)/White (RAL9003)
· Length: 600mm,900mm,1200mm optional
· IP grade: IP20
· CCT: 2700K,3000K,4000K optional
· CRI: 90
· SDCM(Light source):≤3 Step(ANSI)
· Light efficiency: 100 LM/W
· Input voltage: DC24-48V,DC48V
· Lighting direction: Downward
· Dimming method: Non,DALI-2,Tuya Bluetooth,CASAMBI
· Application: Indoor
· Certification: CE,UKCA,ROHS,Reach
· Warranty: 5 years

MT20CD

Track Lights > Low-voltage > MagTrack 20 > Linear Module

Reset selected

CCT

  • 2700K

  • 3000K

  • 4000K

CRI

  • >90

Beam Angle

  • 200°x110°

Typ.power

  • 12W

  • 18W

  • 24W

Label Type

  • COLORS

  • Customized Label

Diffuser Nature

  • Round tube

Color

  • White

  • Black

Cover Color

  • White

Length

  • 600mm

  • 900mm

  • 1200mm

Dimming Method

  • Non-Dimming

  • DALI Dimming

  • Tuya-Bluetooth Mesh Dimming

Input Voltage

  • DC48V

  • DC24-48V

User Manual

  • EN

Ordering Code:

TLS-MT20CD90FFW

Qty

$ ** /SET

Login to view price

$ ** /SET

Ordering Code:

TLS-MT20CD90FFW
